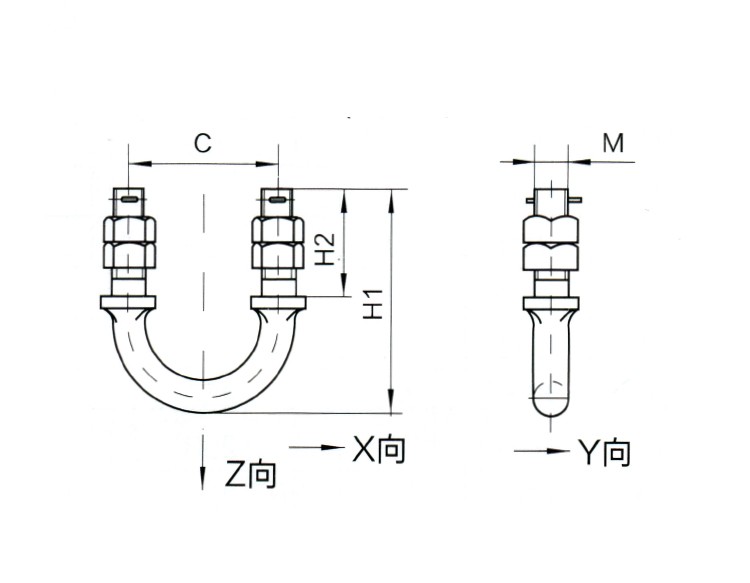

| Catalog No. | Dimensions(mm) | Failure Load(KN) | Weight(KG) | |||||||||
| C | M | H1 | H2 | X | Y | Z | ||||||
| UJ-1880 | 80 | 18 | 105 | 50 | 18 | 5.3 | 35 | 0.85 | ||||
| UJ-2080 | 80 | 20 | 120 | 60 | 24 | 7.4 | 47 | 1.1 | ||||
| UJ-2280 | 80 | 22 | 127 | 65 | 28 | 10.8 | 57 | 1.4 | ||||
1.Function and Design:
1）UJ-type U-bolts have a pedestal at the lower part of the thread.
2）The pedestal helps offset the bending moment caused by horizontal loads.
3）These U-bolts are specifically designed for use with ground wires and small-section wires in overhead power lines.
4）They provide reliable support and stability.
2.Shape:

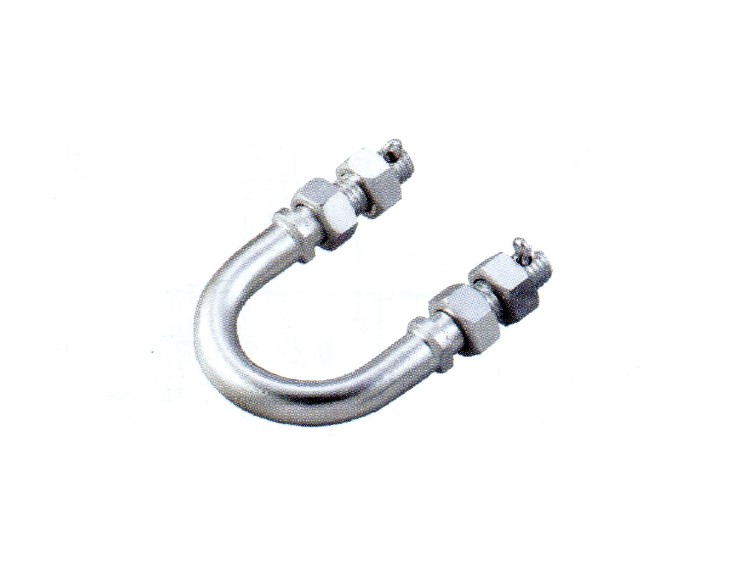

1）The UJ-type U-bolt has a semi-circular shape.
2）It consists of a hanging ring and a threaded rod at both ends.
3）The semi-circular design ensures effective load distribution and secure attachment to the tower.
