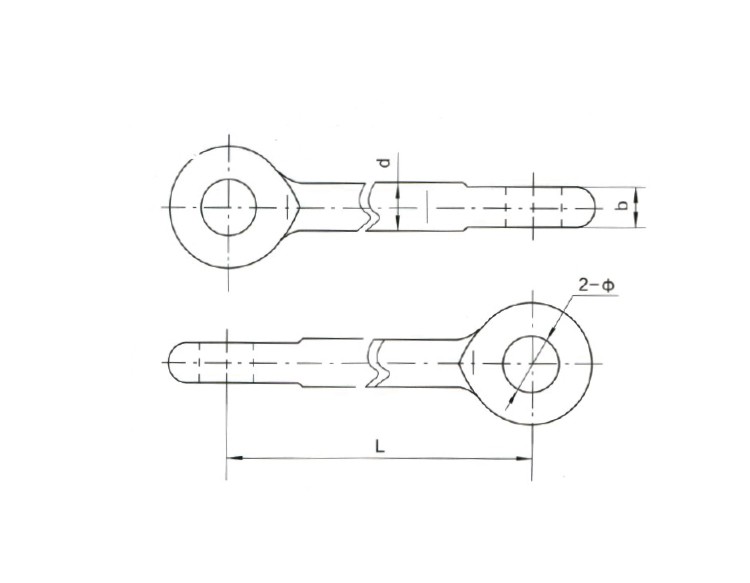

| Catalog No. | Dimensions(mm) | Failure Load(KN) | Weight(KG) | |||||
| Φ | d | L | b | |||||
| YLP-16260 | 26 | 24 | 260 | 20 | 160 | 1.6 | ||
| YLP-16850 | 26 | 24 | 850 | 20 | 160 | 3.7 | ||
| YLP-16910 | 26 | 24 | 910 | 20 | 160 | 3.9 | ||
| YLP-16970 | 26 | 24 | 970 | 20 | 160 | 4.1 | ||
| YLP-16990 | 26 | 24 | 990 | 20 | 160 | 4.3 | ||
| YLP-25855 | 33 | 30 | 855 | 30 | 250 | 6.2 | ||
| YLP-25915 | 33 | 30 | 915 | 30 | 250 | 6.6 | ||
| YLP-25935 | 33 | 30 | 935 | 30 | 250 | 6.7 | ||

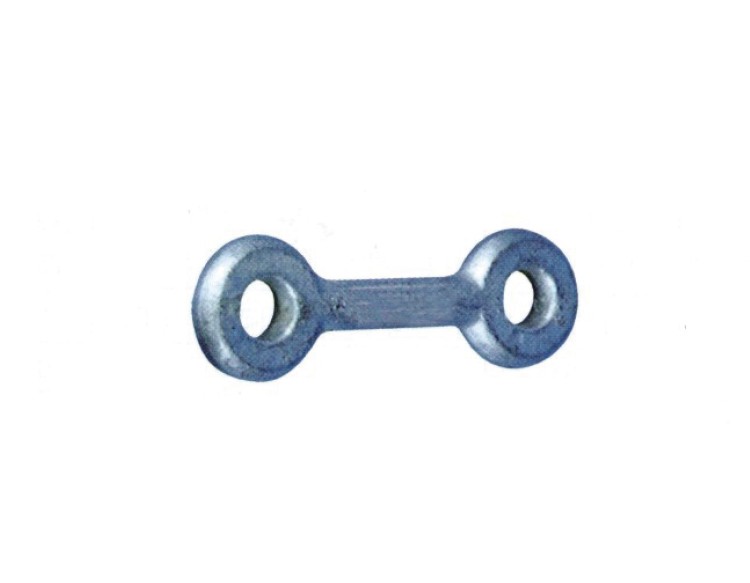

1.Material: These extension rods are typically made from steel or iron.
2.Surface Treatment: They undergo processes such as anti-rust oil, powder coating, or hot-dip galvanization to enhance durability and protect against corrosion.
3.Application: Extension rods are essential components in overhead power line fittings for voltages ranging from 1 to 20 KV.
4.Types Available:
1)Type YLP: Also used for extending cable link fittings.
