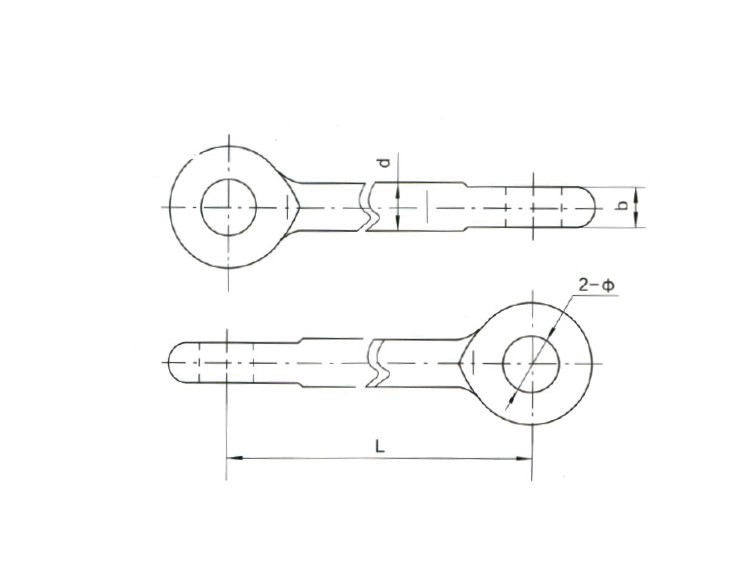

| Catalog No. | Dimensions(mm) | Failure Load(KN) | Weight(KG) | |||||
| Φ | d | L | b | |||||
| YL-1012 | 20 | 18 | 120 | 16 | 100 | 0.8 | ||
| YL-1040 | 20 | 18 | 400 | 16 | 100 | 1.1 | ||
| YL-1050 | 20 | 18 | 500 | 16 | 100 | 1.4 | ||
| YL-1066 | 20 | 18 | 660 | 16 | 100 | 1.7 | ||
| YL-1069 | 20 | 18 | 690 | 16 | 100 | 1.9 | ||
| YL-1243 | 24 | 22 | 430 | 18 | 120 | 1.6 | ||
| YL-1640 | 26 | 22 | 400 | 18 | 160 | 1.6 | ||
| YL-1643 | 26 | 22 | 430 | 18 | 160 | 1.6 | ||
| YL-1655 | 26 | 22 | 550 | 18 | 160 | 2.5 | ||
| YL-1657 | 26 | 22 | 570 | 18 | 160 | 2.7 | ||
| YL-2043 | 30 | 24 | 430 | 20 | 200 | 3 | ||
| YL-2155 | 30 | 26 | 550 | 20 | 210 | 3.1 | ||
| YL-2165 | 30 | 26 | 650 | 20 | 210 | 3.1 | ||
| YL-07430 | 18 | 18 | 430 | 16 | 70 | 1.5 | ||

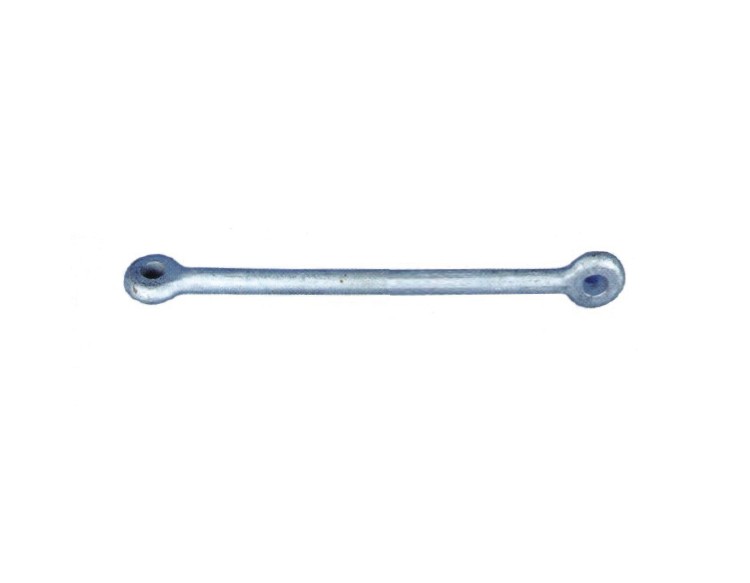

1.Material: These extension rods are typically made from steel or iron.
2.Surface Treatment: They undergo processes such as anti-rust oil, powder coating, or hot-dip galvanization to enhance durability and protect against corrosion.
3.Application: Extension rods are essential components in overhead power line fittings for voltages ranging from 1 to 20 KV.
4.Types Available:
1)Type YL: Used to extend the length of cable link fittings.
