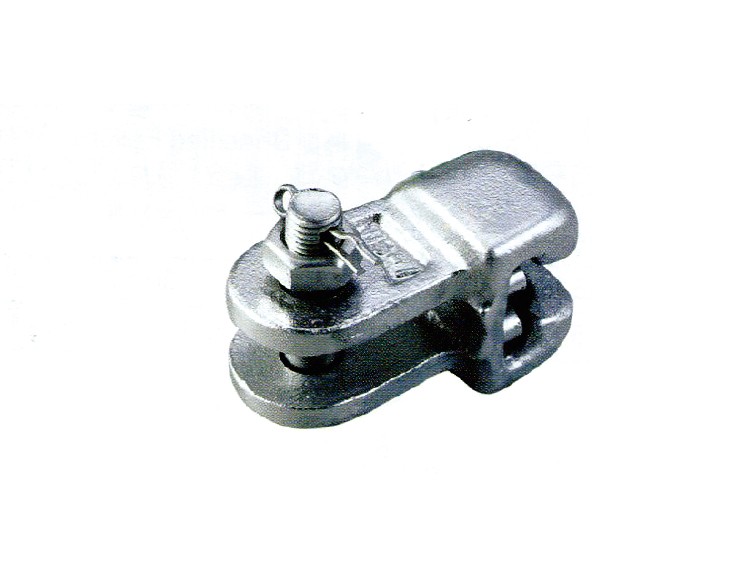

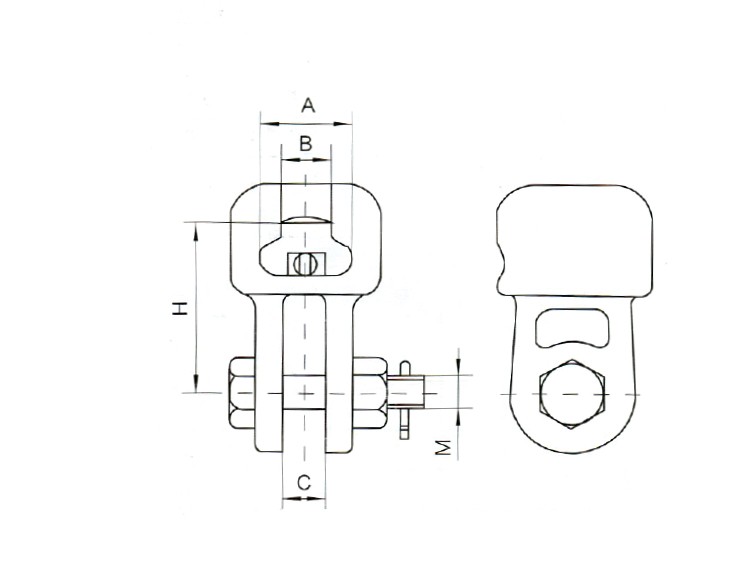

Hot-DIP Galvanized Link Fittings Socket Clevis

Here are some key details about it:

1.Purpose: Link fittings connect clamps to insulators or link insulators and wire clamps to tower arms and substation structures.

2.Material: The WSY Socket Clevis is mainly made of heat-treated steel, which is suitable for forging and exhibits good performance.

3.Dimensions: The dimensions of the ball and socket for special linkage conform to IEC 120 and GB4056-83 standards.

4.Design Types:

  1)Ball Eye (Q, QP, QH Type):

    (1)Available in different sizes (e.g., Q-7N, Q-10N, Q-12N).

    (2)Designed for perpendicular connections.

    (3)Hot-dip galvanized steel construction.

  2)Ball Eye (Parallel Type):

    (1)Suitable for specific insulators (e.g., XP-7, XP-12, XP-16).

    (2)Hot-dip galvanized to prevent corrosion.

  3)Ball Eye (Perpendicular Type, Horn Holder Type):

    (1)Available in various sizes (e.g., Q-7, QP-10, QH-16).

    (2)Designed for different coupling requirements.

    (3)Rated failure loads range from 70 kN to 300 kN.

5.Advantages:

  1)No directional limitation: Can be turned freely.

  2)Easy to load and unload.

6.Application: Typically used in transmission line systems.
