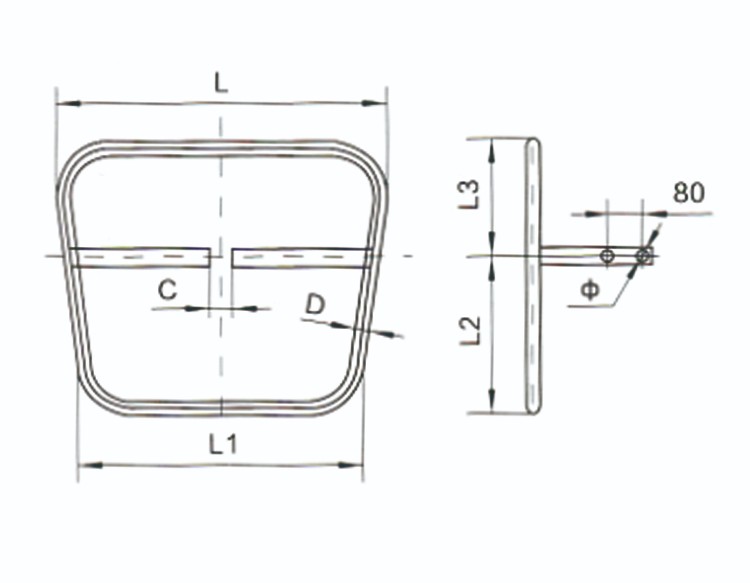

| Catalog No. | Main dimensions(mm) | Weight （kg) | Material | ||||||
| L | L1 | L2 | H1 | H2 | C | Φ | |||
| P-330X | 800 | 700 | 280 | 380 | 18 | 32 | 18 | 5.48 | steel |
| P-330XL | 800 | 700 | 280 | 380 | 18 | 32 | 18 | 2.7 | aluminum |
1.Purpose:They are designed to fix and connect conductors onto the tension insulator string or the fittings on poles and towers. They sustain the tensile force generated by the conductor.
2.Material:These clamps are made of hot-dip galvanized steel. The clamp body and jumper are made of Aluminum Alloy. They come in different sizes and are designed to accommodate various diameters of steel wire.
3.Type:There are different types of Strain Clamps-NY-G, including the Hydraulic Compression Type, the Welding Type, and the Forging Type. The type used depends on the specific requirements of the power transmission line.
