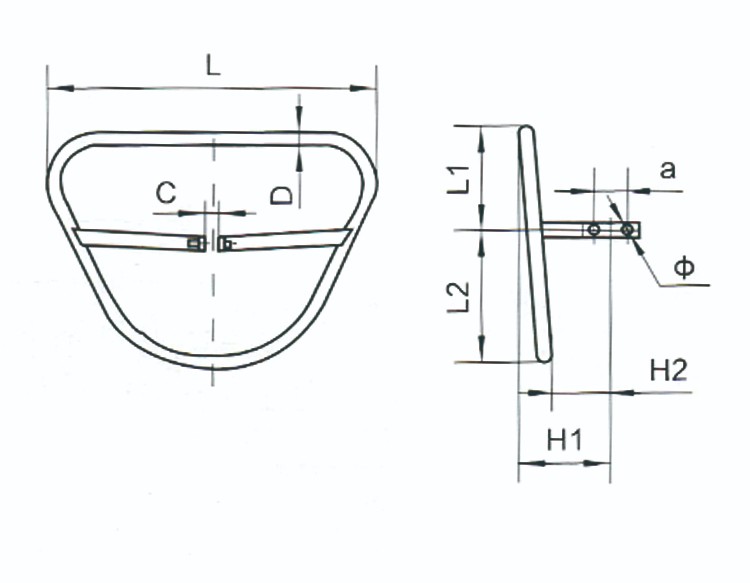

| Catalog No. | Main dimensions(mm) | Weight （kg) | Material | |||||||
| L | L1 | L2 | H1 | H2 | C | D | Φ | |||
| JP-330-X | 800 | 270 | 350 | 220 | 145 | 18 | 32 | 18 | 4.2 | steel |
| FJP-330-NB | 800 | 320 | 380 | 392 | 150 | 26 | 32 | 18 | 4.8 | steel |
| JP-330-XL800 | 800 | 270 | 350 | 220 | 145 | 18 | 32 | 18 | 2.1 | steel |
1.Purpose:They are designed to fix and connect conductors onto the tension insulator string or the fittings on poles and towers. They sustain the tensile force generated by the conductor.
2.Material:These clamps are made of hot-dip galvanized steel. The clamp body and jumper are made of Aluminum Alloy. They come in different sizes and are designed to accommodate various diameters of steel wire.
3.Type:There are different types of Strain Clamps-NY-G, including the Hydraulic Compression Type, the Welding Type, and the Forging Type. The type used depends on the specific requirements of the power transmission line.
