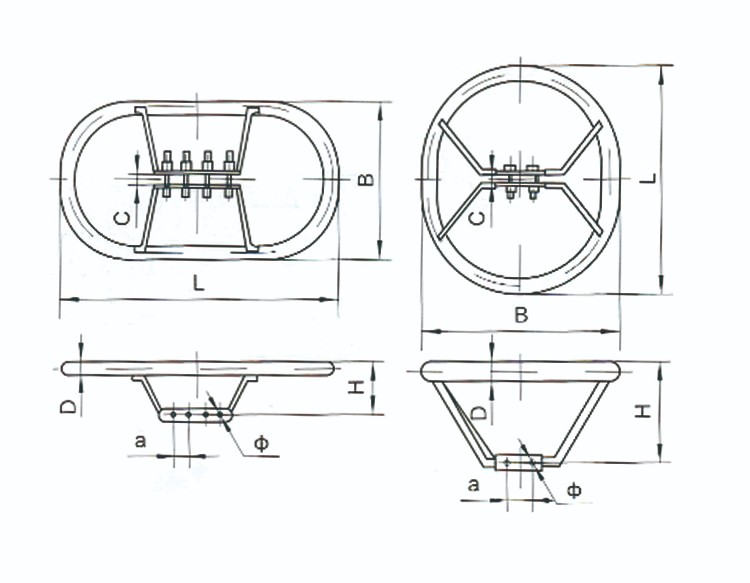

Catalog No. | Main dimensions(mm) | Weight (kg) | Material | ||||||
L | B | H | a | C | D | Φ | |||
FJP-330XS | 900 | 600 | 231 | 120 | 22 | 32 | 14 | 10.6 | steel |
FJP-330XD | 700 | 600 | 275 | 80 | 20 | 32 | 18 | 9.6 | steel |
1.Purpose:They are designed to fix and connect conductors onto the tension insulator string or the fittings on poles and towers. They sustain the tensile force generated by the conductor.
2.Material:These clamps are made of hot-dip galvanized steel. The clamp body and jumper are made of Aluminum Alloy. They come in different sizes and are designed to accommodate various diameters of steel wire.
3.Type:There are different types of Strain Clamps-NY-G, including the Hydraulic Compression Type, the Welding Type, and the Forging Type. The type used depends on the specific requirements of the power transmission line.
