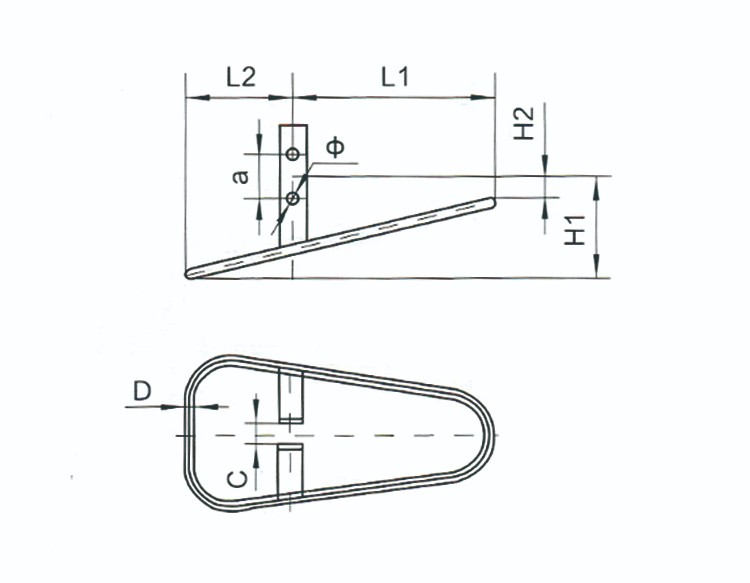

| Catalog No. | Main dimensions(mm) | Weight （kg) | Material | |||||||
| L1 | L2 | H1 | H2 | a | C | D | Φ | |||
| JP-330-N | 652 | 352 | 392 | 120 | 80 | 24 | 32 | 18 | 5.2 | steel |
| J-330N | 702 | 320 | 176 | 136 | 80 | 24 | 32 | 18 | 5 | steel |
| JP-30NL | 650 | 270 | 392 | 120 | 80 | 24 | 32 | 18 | 2.5 | aluminum |
1.Purpose:They are designed to fix and connect conductors onto the tension insulator string or the fittings on poles and towers. They sustain the tensile force generated by the conductor.
2.Material:These clamps are made of hot-dip galvanized steel. The clamp body and jumper are made of Aluminum Alloy. They come in different sizes and are designed to accommodate various diameters of steel wire.
3.Type:There are different types of Strain Clamps-NY-G, including the Hydraulic Compression Type, the Welding Type, and the Forging Type. The type used depends on the specific requirements of the power transmission line.
