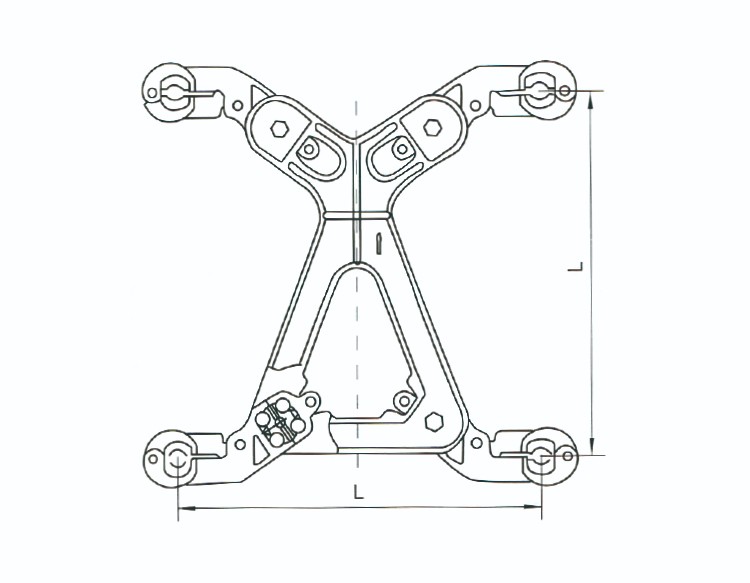

| Catalog No. | Suitable Conductor | Main dimensions(mm) | Weight (kg) | |
| L | ||||
| FZJ4-35150 | LGJ-150/20,25,35 | 350 | 4.6 | |
| FZJ4-35185 | LGJ-185/25,30,45 | 350 | 4.6 | |
| FZJ4-35210 | LGJ-210/25,35,50 | 350 | 4.6 | |
| FZJ4-35240 | LGJ-240/30,40,55 | 350 | 4.6 | |
1.They prevent electromagnetic force interactions during short circuits and control wind-induced vibrations.
2.These dampers are essential for ensuring consistent electricity performance and protecting the system from damage due to environmental factors like wind and ice.
3.Four-bundle conductors differ from three-bundle ones primarily in their arrangement. In a three-bundle conductor, the sub-conductors are arranged in an equilateral triangle, while in a four-bundle conductor, they are arranged in a square shape. This geometric arrangement affects the distribution of electrical fields and the physical spacing between the conductors.
