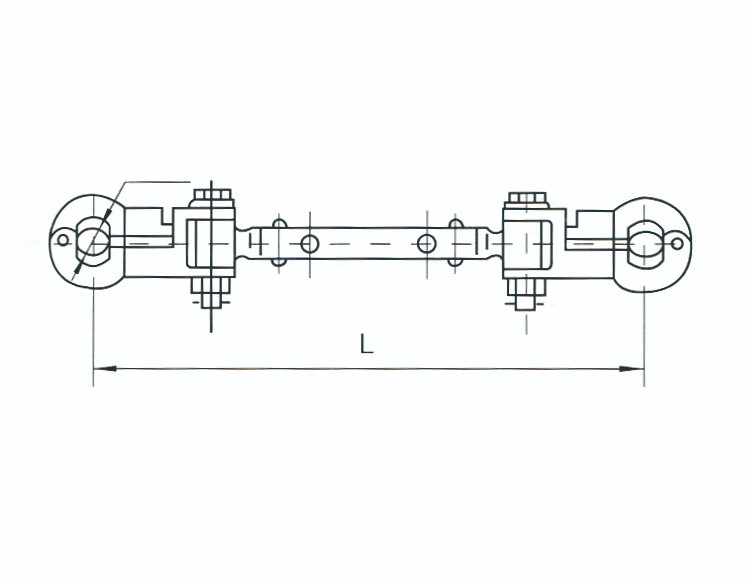

| Catalog No. | Suitable Conductor | Main dimensions(mm) | Weight (kg) | |
| L | Φ | |||
| FJZ-240/300 | LGJ-300/40~50 | 400 | 20~24 | 3.1 |
| FJZ-240/400 | LGJ-400/35~40 | 400 | 20~24 | 3.1 |

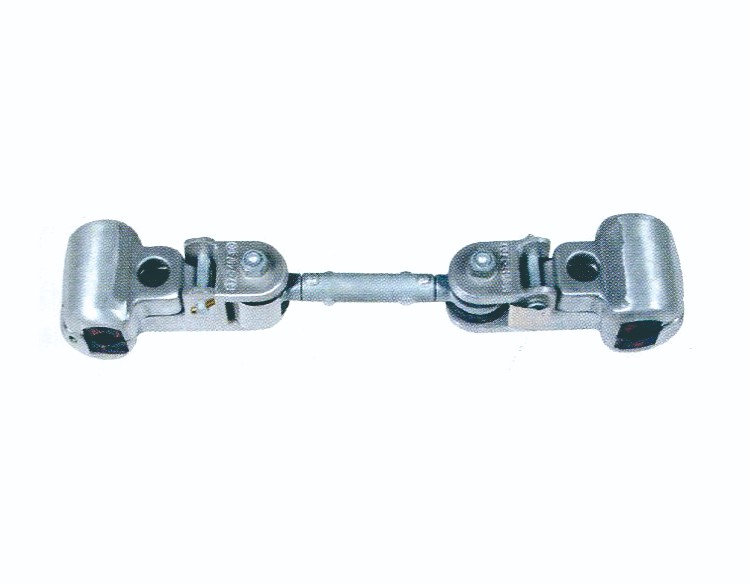

1.The FJZ Twin Spacer Damper is designed for power lines and features an aluminum alloy body with keepers.
2.The damper part is made of DEMP elastomer, while the other parts are constructed from hot-dip galvanized steel.
3.This model is known for providing effective control against wind vibrations and sub-conductor oscillations. It ensures a firm but gentle grip on the conductors, protecting them against both static and dynamic stresses.
