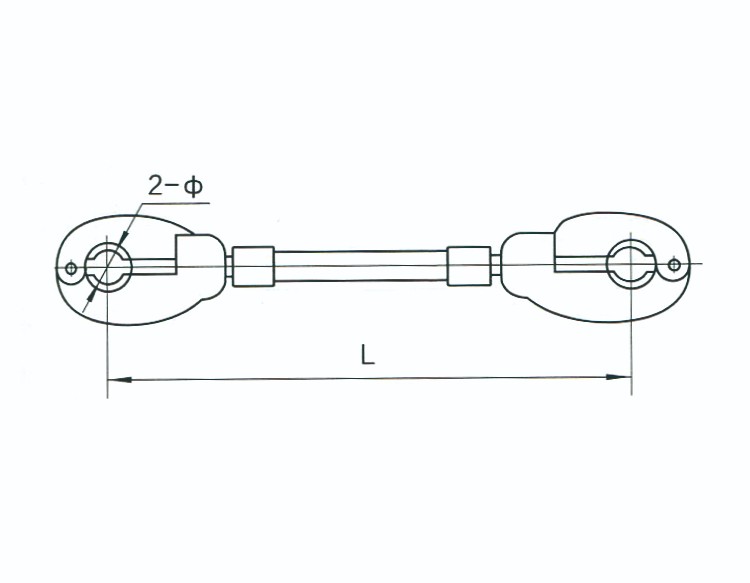

| Catalog No. | Suitable Conductor | Main dimensions(mm) | Weight (kg) | |
| L | Φ | |||
| JJB2-45/300 | LGJ-300 | 450 | 22.5 | 2.6 |
| JJB2-45/400 | LGJ-400 | 450 | 27.5 | 2.5 |
| JJB2-45/500 | LGJ-500 | 450 | 28.2 | 3.1 |

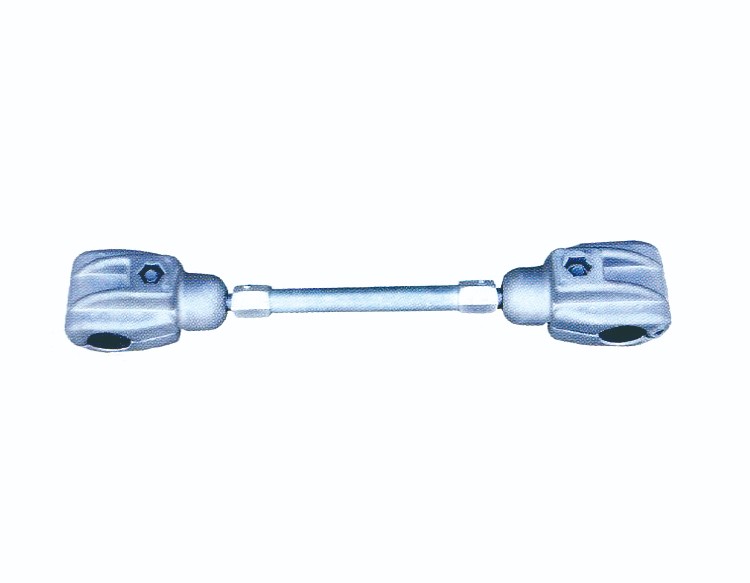

1.Spacer dampers work by dissipating vibration energy on the conductors.
2.They typically consist of elastomer parts inserted between the clamp arm and the spacer body, which constitute a rotary mechanism or joint. This allows relative movement between the parts of the spacer, particularly the rotation of the arm in relation to the rotary axis.
3.This movement helps to absorb and reduce the vibrations caused by wind or other environmental factors, ensuring that the conductors remain stable and protected from damage due to clashing or excessive movement.
