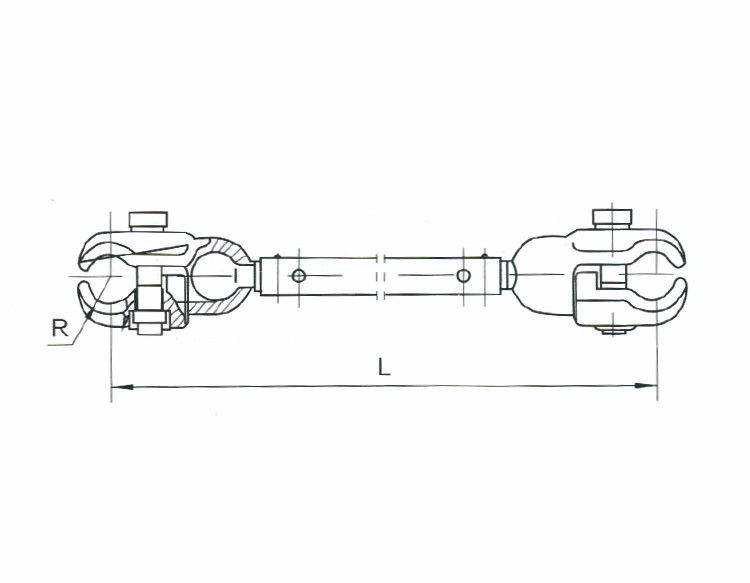

| Catalog No. | Suitable Conductor | Main dimensions(mm) | Axial load (kN) | Weight (kg) | |
| L | R | ||||
| FJQ-204 | 185~240 | 200 | 11 | 7 | 0.85 |
| FJQ-205 | 300~400 | 200 | 14.5 | 10 | 1.05 |
| FJQ-403 | 120~150 | 400 | 9.5 | 7 | 1 |
| FJQ-404 | 185~240 | 400 | 14.5 | 7 | 1 |
| FJQ-405 | 300~400 | 400 | 14.5 | 10 | 1.2 |
| FJQ-455 | 300~400 | 450 | 15.4 | 10 | 2.43 |

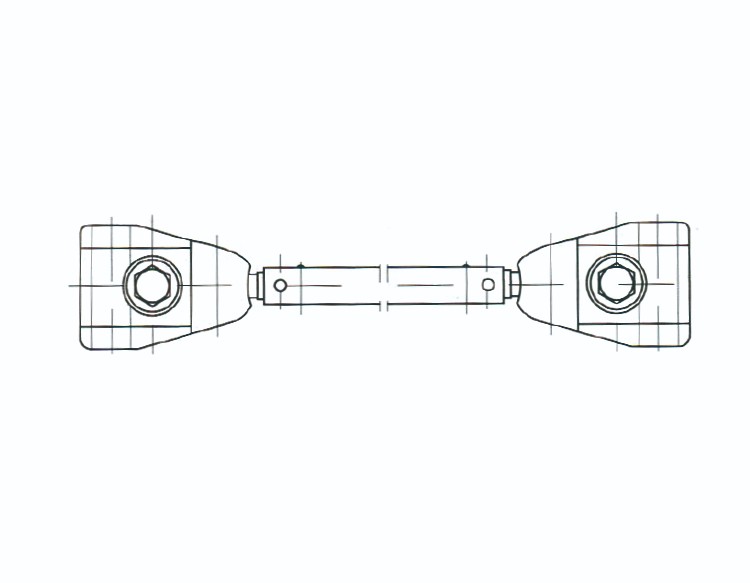

| stable design Catalog No. | Suitable Conductor | Main dimensions(mm) | Weight (kg) | |
| L | ||||
| FJG-220/22 | JL/G1A-240/30 | 200 | 0.9 | |
| FJG-220/22 | JL/G1A-240/40 | 200 | 0.9 | |
| FJG-220/24 | JL/G1A-300/25 | 200 | 0.9 | |
| FJG-220/24 | JL/G1A-300/40 | 200 | 0.9 | |
| FJG-220/27 | JL/G1A-400/35 | 200 | 1.2 | |
| FJG-220/28 | JL/G1A-400/50 | 200 | 1.2 | |
| FJG-230/30 | JL/G1A-500/45 | 300 | 1.9 | |
| FJG-230/34 | JL/G1A-630/45 | 300 | 1.9 | |
| FJG-230/34 | JL/G1A-630/55 | 300 | 1.9 | |
| FJG-445/27 | JL/G1A-400/35 | 450 | 4.7 | |
1.They add reliability and protection to the conductor bundle by preventing conductors from clashing under operating conditions, such as high-frequency vibrations caused by wind flow.
2.Modern spacer dampers are designed to provide accurate damping of wind-induced vibrations for bundled conductor lines.
3.They are essential for maintaining the stability and safety of power transmission lines.
