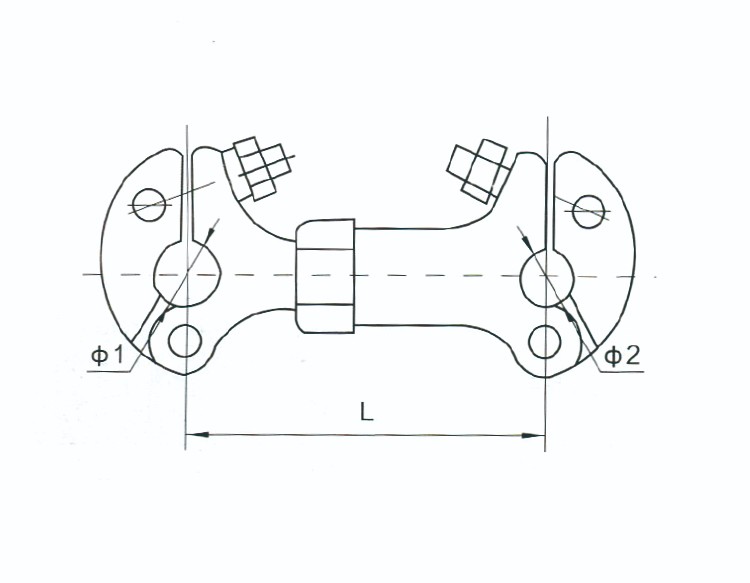

| Catalog No. | Fit wire diameter | Main dimensions(mm) | Weight (kg) | ||
| L | Φ1 | Φ2 | |||
| TJ2-12300 | 23~24.5 | 120 | 18(20) | 24 | 0.85 |
| TJ-2-12400 | 26~28 | 120 | 22(24) | 28 | 0.85 |
| TJ-2-12500 | 30 | 120 | 30 | 24 | 0.95 |
| stable design Catalog No. | Suitable Conductor | Main dimensions(mm) | Weight (kg) | ||
| L | Φ1 | Φ2 | |||
| TJ2-120-28/19 | JL/G1A-400/35 | 120~135 | 28 | 19 | 0.9 |
| TJ2-120-28/23 | JL/G1A-400/35 | 120~135 | 28 | 23 | 0.9 |
1.It serves as the mounting point for the hammer or weight, which is the moving part of the damper.
2.The seat ensures that the hammer is securely positioned and can move freely to counteract vibrations in the transmission line.
3.This helps to maintain the integrity of the line by reducing mechanical stress and preventing potential damage from long-term wear or sudden impacts.
