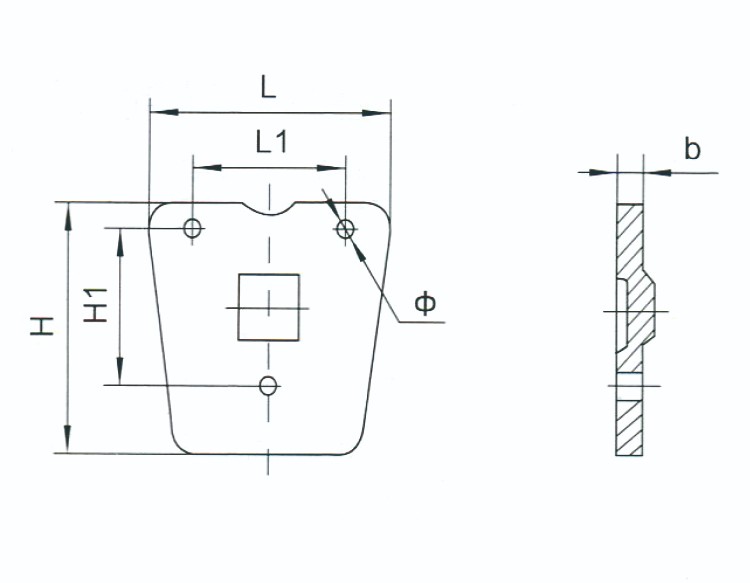

| Catalog No. | Main dimensions(mm) | Weight(kg) | |||||
| L | L1 | H | H1 | Φ | b | ||
| ZC-10 | 225 | 185 | 190 | 150 | 18 | 20 | 10 |
| ZC-18 | 350 | 240 | 300 | 220 | 24 | 30 | 21.8 |
| ZC-18G | 350 | 240 | 300 | 220 | 24 | 36 | 21.8 |
| ZC-30 | 380 | 240 | 300 | 220 | 24 | 35 | 30 |

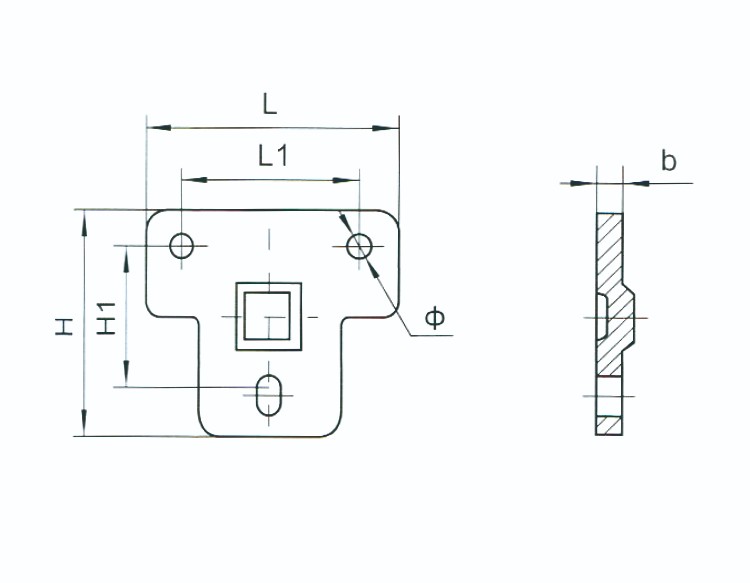

| Catalog No. | Main dimensions(mm) | Weight(kg) | |||||
| L | L1 | H | H1 | Φ | b | ||
| ZC-20 | 390 | 240 | 300 | 225 | 24 | 30 | 21.8 |

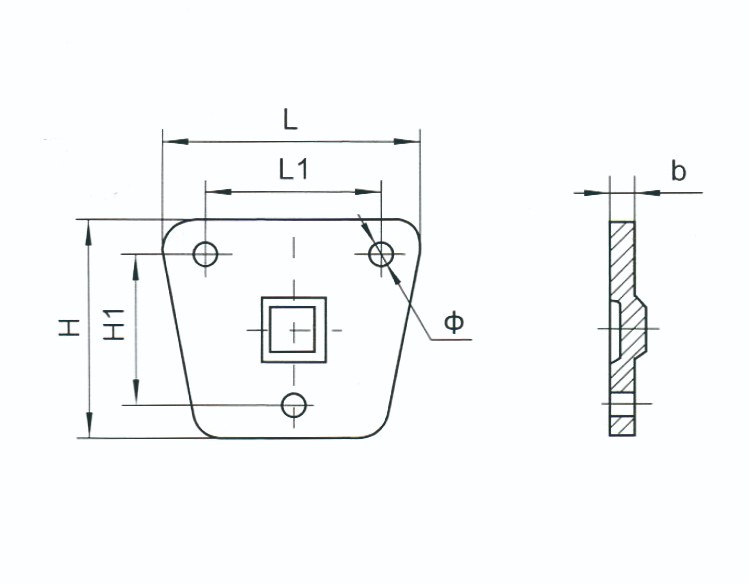

| Catalog No. | Main dimensions(mm) | Weight(kg) | |||||
| L | L1 | H | H1 | Φ | b | ||
| ZC-20 | 450 | 240 | 300 | 220 | 24 | 30 | 21.8 |

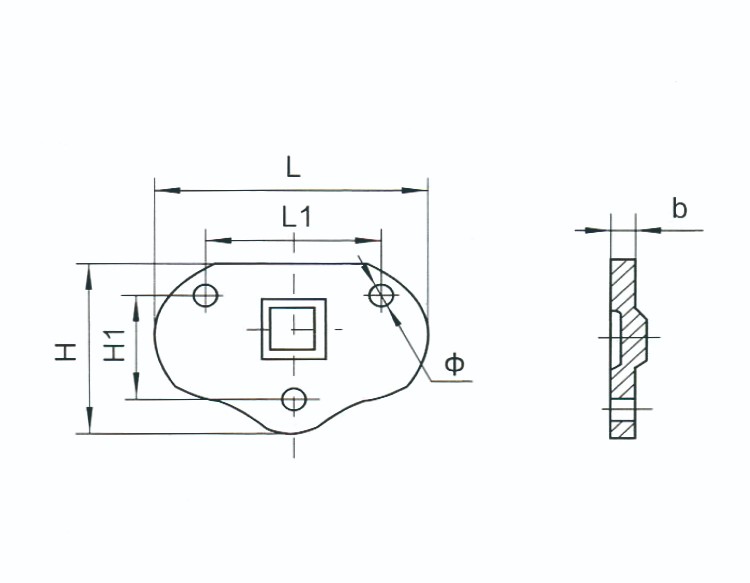

| stable design Catalog No. | Main dimensions(mm) | Fig No. | Weight(kg) | |||||
| L | L1 | H | H1 | Φ | b | |||
| FZC-10 | 300 | 120 | 230 | 220 | 20 | 34 | 1 | 10 |
| FZC-20 | 390 | 240 | 325 | 220 | 24 | 30 | 1 | 20 |

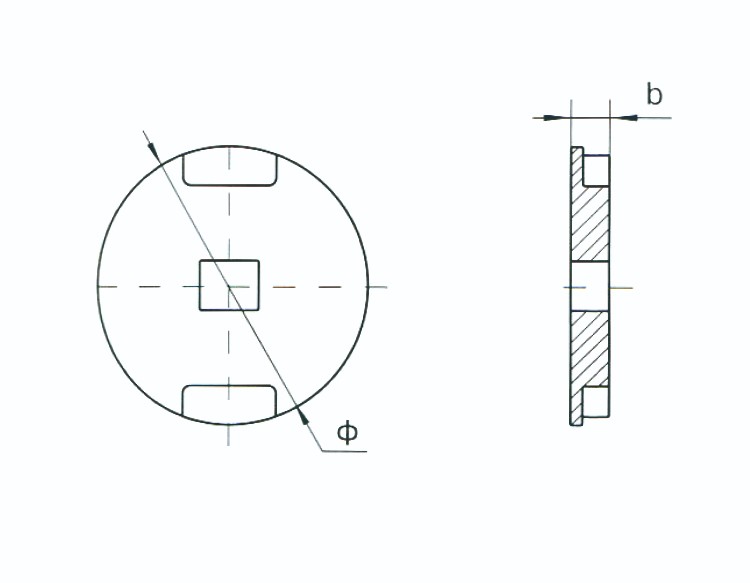

| FZC-15Y | 280 | 38 | 2 | 15 | ||||

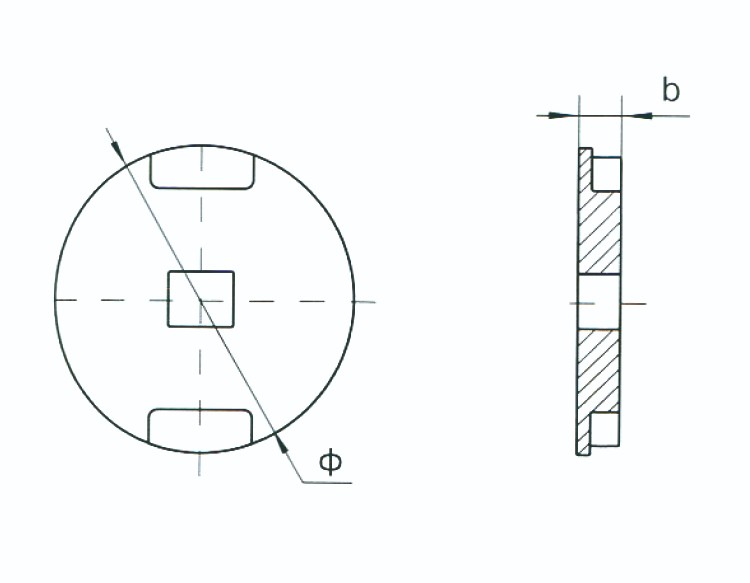

| Catalog No. | Main dimensions (mm) | Weight(kg) | |
| Φ | b | ||
| ZC-15Y | 278 | 38 | 15 |

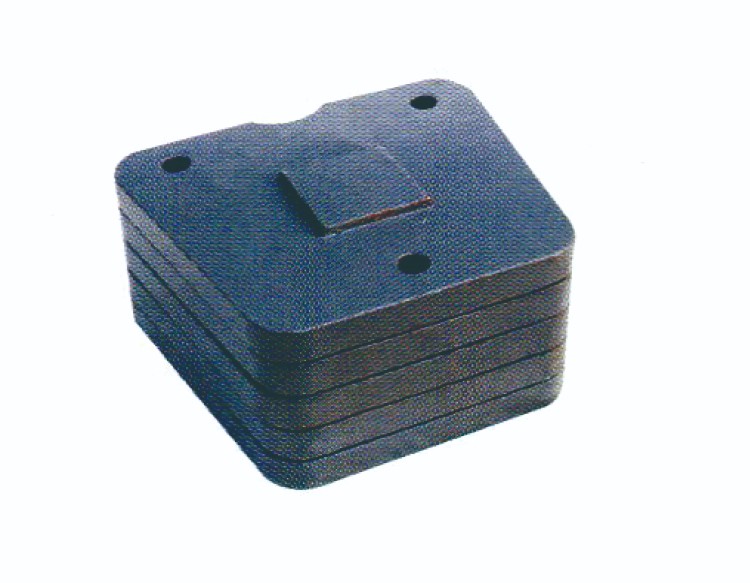

1.It helps maintain the stability of the line, especially under varying load conditions and environmental factors like wind or ice.
2.Counter weights can be made from different materials and are designed according to the specific requirements of the transmission line system.
