| Catalog No. | Suitable Conductor | Main dimensions(mm) | No ofa Strand | Weight (kg) | ||

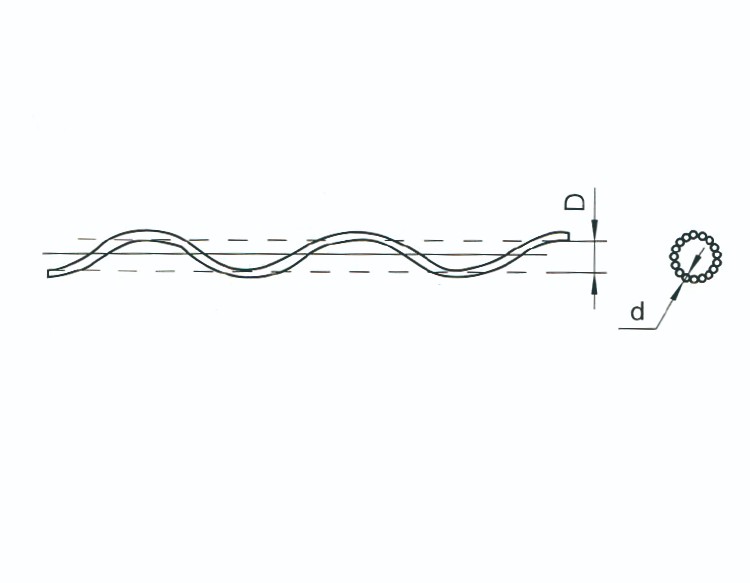

| D | d | L1 | ||||
| YJB-35 | LGJ-35 | 7.1 | 3.6 | 270 | 9 | 0.08 |
| YJB-50 | LGJ-50 | 8.2 | 3.6 | 300 | 10 | 0.09 |
| YJB-70 | LGJ-70 | 9.7 | 3.6 | 340 | 11 | 0.12 |
| YJB-95 | LGJ-95 | 11.6 | 4.6 | 420 | 11 | 0.23 |
| YJB-120 | LGJ-120 | 12.9 | 4.6 | 450 | 12 | 0.27 |
| YJB-150 | LGJ-150 | 14.4 | 4.6 | 480 | 13 | 0.3 |
| YJB-185 | LGJ-185 | 16.2 | 4.6 | 580 | 14 | 0.39 |
| YJB-240 | LGJ-240 | 18.4 | 6.3 | 640 | 12 | 0.66 |
| YJB-300 | LGJ-300 | 20.5 | 6.3 | 700 | 13 | 0.8 |
| YJB-400 | LGJ-400 | 23.8 | 6.3 | 820 | 14 | 1.05 |
| YJB-300Q | LGJ-300Q | 20 | 6.3 | 700 | 13 | 0.8 |
| YJB-400Q | LGJ-400Q | 23 | 6.3 | 820 | 14 | 1.05 |
| YJB-5000 | LGJ-500Q | 25.7 | 7.8 | 870 | 13 | 1.74 |
1.They are applied to the conductor at the points where it is supported by insulators or connected to hardware.

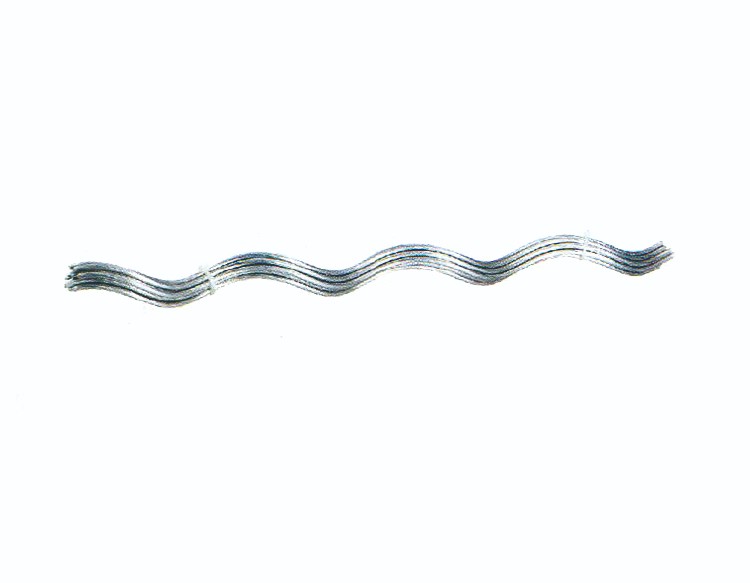

2.The "YJB" refer to a specific model or type of preformed rod. These rods are typically made of materials like aluminum-clad steel or galvanized steel and are designed to fit snugly on the conductor, providing a protective layer that helps distribute mechanical loads and reduce conductor fatigue.
3.Preformed rods are an essential component for enhancing the longevity and reliability of power transmission lines by mitigating potential damage from environmental factors and line movement.
