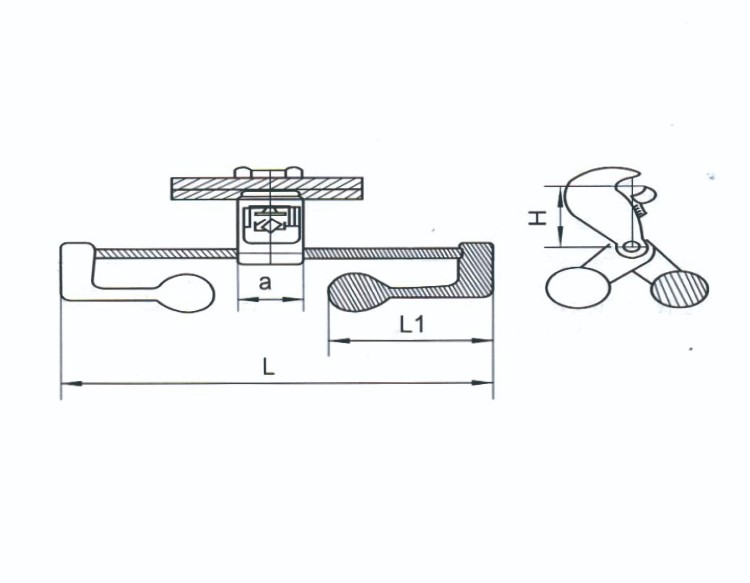

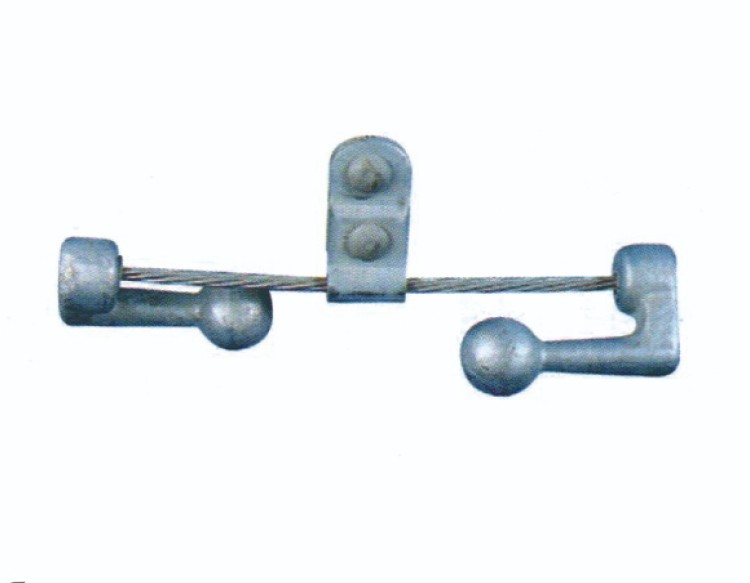

| stable design Cataiog No. | Fit wire diameter | Main dimensions(mm) | Weight(KG) | |||
| L | H | a | L1 | |||
| FDZ-1 | 7~12 | 320 | 66 | 50 | 120 | |
| FDZ-2 | 11~15 | 350 | 66 | 50 | 130 | |
| FDZ-3 | 14~19 | 430 | 66 | 60 | 150 | |
| FDZ-4 | 18~22.5 | 470 | 66 | 60 | 160 | |
| FDZ-5F | 22~29 | 520 | 95 | 60 | 180 | |
| FDZ-6F | 28~35 | 520 | 95 | 60 | 180 | |
| FDZ-1T | 7.8 | 320 | 30.7 | 50 | 120 | |
| FDZ-2T | 9~9.6 | 350 | 30.7 | 50 | 130 | |
| FDZ-3T | 11~11.5 | 430 | 44.7 | 60 | 150 | |
| FDZ-4T | 13 | 470 | 44.7 | 60 | 160 | |
1.Purpose: Spacing devices are installed on the bundles to maintain subconductor separation.
2.Damping Effect: Elastic and damping elements are introduced into the spacing devices to distribute the damping effect along the spans. This prevents entrapment of vibration between spacer dampers and avoids bending stresses at the clamps.
3.Types:
1)Twin Spacer Damper
2)Triple Spacer Damper
3)Quad Spacer Damper
4.Features:
1)Maintain design spacing between subconductors under normal service conditions.
2)Control aeolian vibrations and subspan oscillations within internationally accepted safety limits.
3)Preserve mechanical, elastic, and damping properties over the entire service temperature range and expected lifetime of the line.
4)Maintenance-free throughout the line’s lifetime.
5)Permit movement of subconductors in any direction without damaging spacer components or subconductor strands.
6)Guarantee high corona extinction voltage due to proper clamp design and manufacturing.
7)Withstand a minimum short-circuit current of 63 kA for 1 second.
