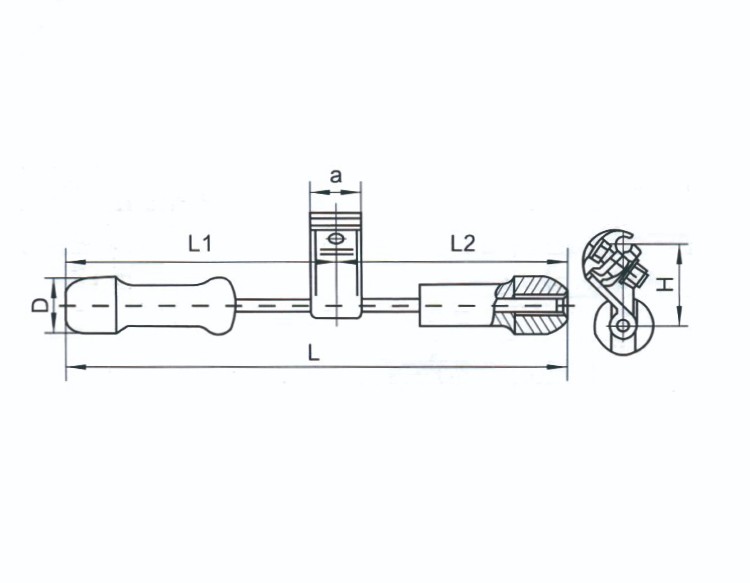

| Cataiog No. | Fit wire diameter | Main dimensions(mm) | Weight(KG) | ||||
| L | H | a | L1 | L2 | |||
| FR-1 | 7~12 | 429 | 80 | 50 | 239 | 190 | 2.6 |
| FR-2 | 11~22 | 429 | 80 | 50 | 239 | 190 | 2.6 |
| FR-3 | 18~28 | 505 | 90 | 60 | 280 | 225 | 4.97 |
| FR-4 | 23~36 | 550 | 97 | 60 | 300 | 250 | 4.5 |
| stable design Cataiog No. | Fit wire diameter | Main dimensions(mm) | Weight(KG) | ||
| L | H | a | |||
| FRY-1/G | 6.4~8.6 | 280 | 45 | 40 | 1.5 |
| FRY-2/G | 8.6~12 | 380 | 60 | 50 | 2.2 |
| FRY-3/G | 12~14.5 | 480 | 65 | 60 | 4.2 |
| FRY-1/2 | 12~16 | 429 | 80 | 50 | 2.8 |
| FRY-2 | 12~16 | 429 | 80 | 50 | 2.8 |
| FRY-2/3 | 16~18 | 429 | 80 | 50 | 2.8 |
| FRY-3/4 | 18~22.5 | 505 | 90 | 60 | 4.5 |
| FRY-3/5 | 22.5~30 | 505 | 90 | 60 | 5 |
| FRY-4/5 | 22.5~30 | 550 | 97 | 60 | 7.6 |
| FRY-4/6 | 30~35 | 550 | 97 | 60 | 7.6 |

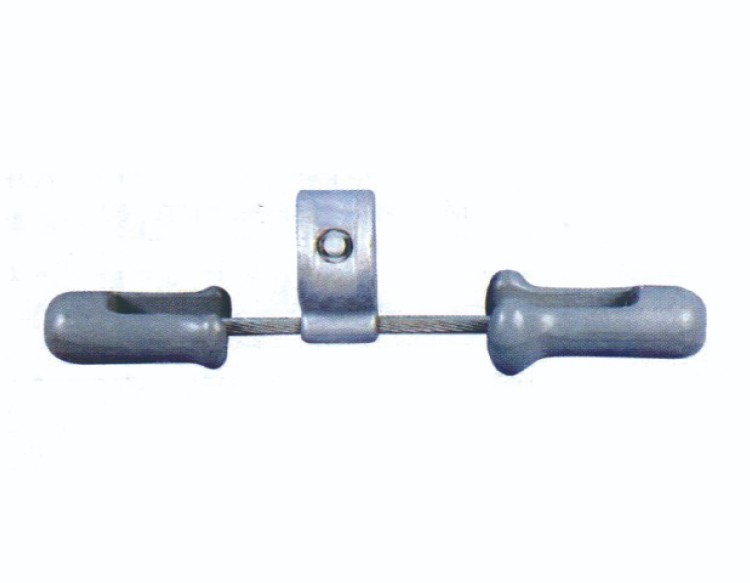

1.Components:
1)The line clamp is made of aluminum alloy.
2)The hammer head is constructed from gray cast iron.
3)The remaining components are either painted or hot-dip galvanized steel.
2.Applications:
1)These dampers play a crucial role in controlling vibrations induced by external factors such as wind, human movement, and cable-structure interactions.
2)They are commonly used in overhead transmission lines and other civil engineering projects.
3.Weight:
1)All variants weigh approximately 2.60 kg.
