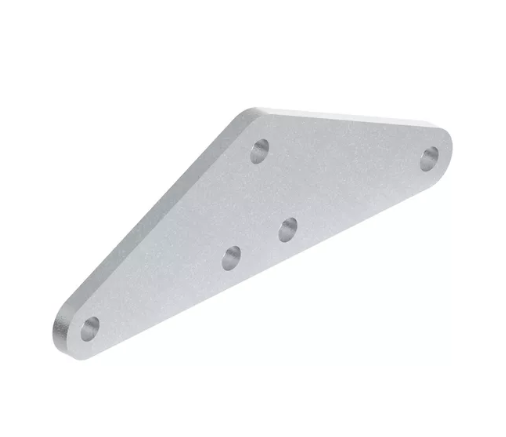

Power Fitting Hot-DIP Galvanized Steel Triangle Yoke Plate L-1040 Manufacturer

echnics:	Hot Galvanizing
Standard:	GB
Usage:	Link Fittings
Type:	Link Fittings
Transport Package:	Polywoven Bag/Wooden Pallet
Specification:	L-1040

Link fitting to connect insulator and fittings on ultra voltage transmission line. The yoke plate is hot-dip galvanized steel. The shape of LF type yoke plate is just like a rectangle in which an oval hole is located in the middle position; it is used for connection between two pieces of separate conductors subjected to twin-connection insulator string (suspension or tension insulator string). It is mainly installed on overhead high-voltage transmission line

LF Type Yoke Plate is suitable for assembling the suspension insulator to string, and it is also used for connection of one or several strings insulator and then suspending on the pole arm of perch as well as connecting of suspension clamp and dead end clamp and connection between stay wire and perch.

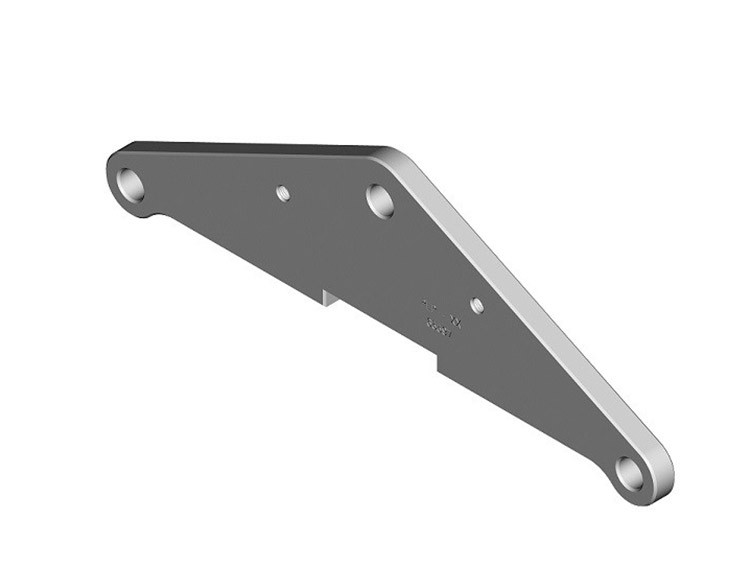

Power Fitting Hot-DIP Galvanized Steel Triangle Yoke Plate L-1040

Quick Details

Place of Origin:	Zhejiang, China
Model Number:	From L-1040 to L-6050
Material:	Hot dip galvanized steel
Usage:	Overhead Transmission Line
Stability:	High
Antivibration:	Good
Durability:	Long
Operation:	Convenient

Material：Hot-dip galvanized steel.

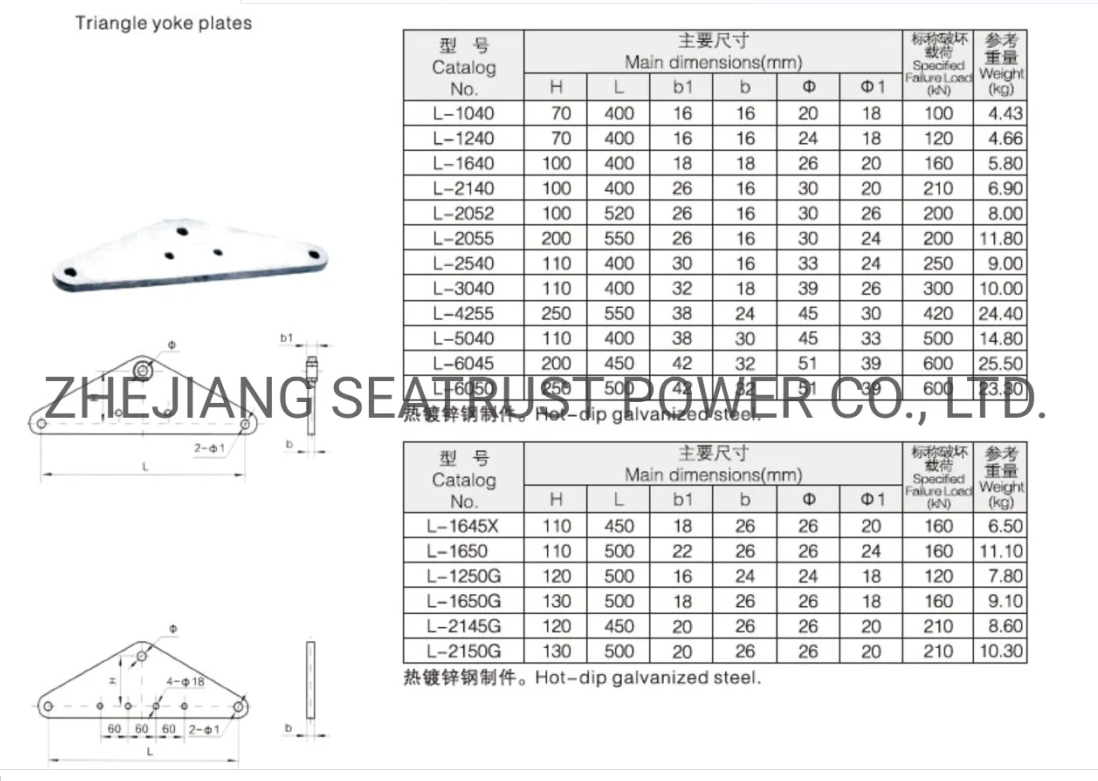

Catalog No.	Dimensions（mm）						Specified Failure Load（KN）	Weight（kg）

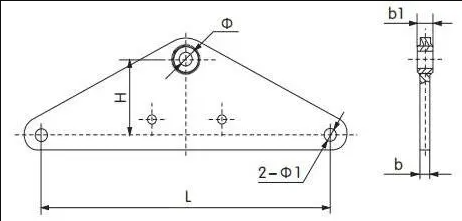

Catalog No.	H	L	b1	b	∅	∅1	Specified Failure Load（KN）	Weight（kg）
L-1040	70	400	16	16	20	18	100	4.43
L-1240	70	400	16	16	24	18	120	4.66
L-1640	100	400	18	18	26	20	160	5.80
L-2140	100	400	26	16	30	20	210	6.90
L-2052	100	520	26	16	30	26	200	8.00
L-2055	200	550	26	16	30	24	200	11.80
L-2540	110	400	30	16	33	24	250	9.00
L-3040	110	400	32	18	39	26	300	10.00
L-4255	250	550	38	24	45	30	420	24.40
L-5040	110	400	38	30	45	33	500	14.80
L-6045	200	450	42	32	51	39	600	25.50
L-6050	250	500	42	32	51	39	600	23.30

Packaging & Delivery

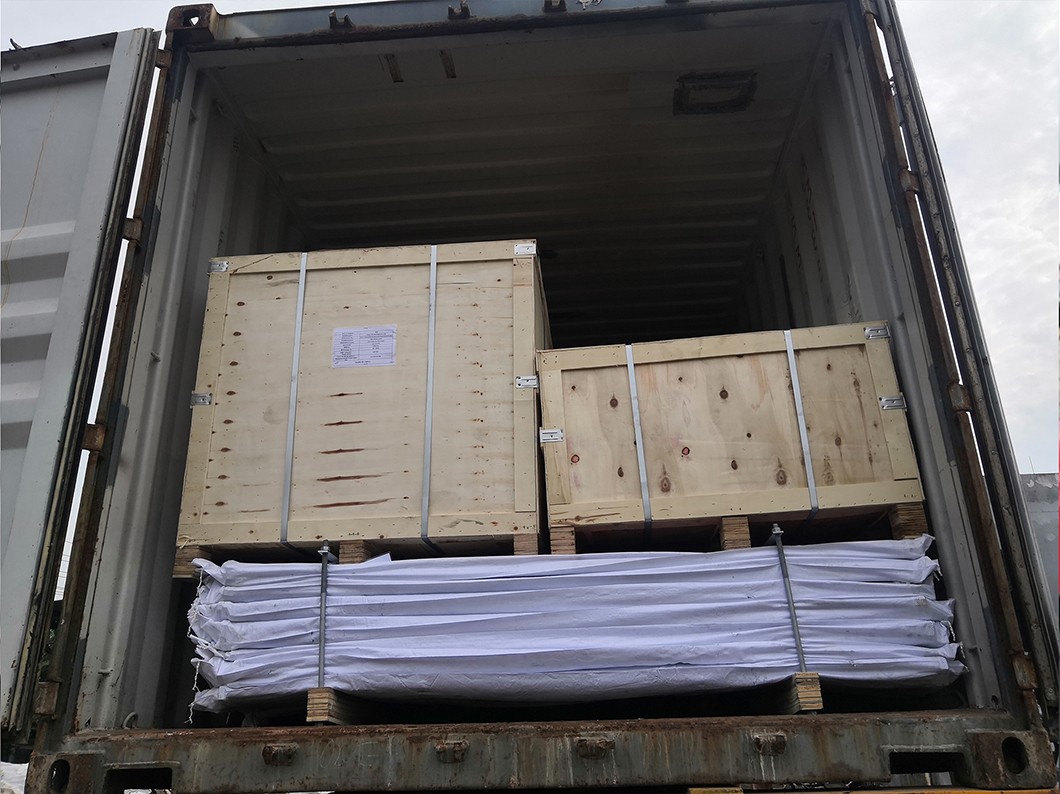

Packaging Details: In wooden box

Delivery Time: Within 2 months

Yoke-plate-L-21-110/400

Material：Hot-dip galvanized steel.

Catalog No.	Dimensions（mm）						Specified Failure Load（KN）	Weight（kg）
Catalog No.	H	L	b1	b	∅	∅1	Specified Failure Load（KN）	Weight（kg）
L-21-11/400	110	400	20	16	26	20	210	6.5
L-21-120/450	120	450	20	16	26	20	210	7.6
L-21-120/500	120	500	20	16	26	20	210	9.3
L-21-130/600	130	600	20	16	26	20	210	10.8
L-25-110/400	110	400	24	16	30	24	250	7
L-25-130/450	130	450	24	16	30	24	250	8.4
L-25-130/500	130	500	24	16	30	24	250	9.1
L-25-130/600	130	600	24	16	30	24	250	10.6
L-32-130/400	130	400	28	18	33	26	320	9.1
L-32-130/450	130	450	28	18	33	26	320	10
L-32-130/500	130	500	28	18	33	26	320	11
L-32-130/600	130	600	28	18	33	26	320	12.8
L-42-140/400	140	400	32	20	39	26	420	10.2
L-42-140/450	140	450	32	20	39	26	420	11.2
L-42-150/500	150	500	32	20	39	26	420	12.6
L-42-150/600	150	600	32	20	39	26	420	14.8
L-21/25-11/400	110	400	24	16	30	24	250	7
L-21/25-130/450	130	450	24	16	30	24	250	8.4
L-21/25-130/500	130	500	24	16	30	24	250	9.1
L-21/25-130/600	130	600	24	16	30	24	250	10.6
L-21/32-130/400	130	400	28	18	33	20	320	8.4
L-21/32-130/500	130	500	28	18	33	20	320	11
L-21/32-130/600	130	600	28	18	33	20	320	12.8

Catalog No.	Dimensions（mm）					Specified Failure Load（KN）	Weight（kg）
Catalog No.	H	L	b	∅	∅1	Specified Failure Load（KN）	Weight（kg）
L-07-70/400	70	400	16	18	18	70	4.5
L-07-70/500	70	500	16	18	18	70	6.0
L-07-70/600	70	600	16	18	18	70	7.2
L-10-70/400	70	400	16	20	18	100	4.5
L-10-70/500	70	500	16	20	18	100	5.3
L-10-100/450	100	450	16	20	18	100	5.8
L-10-100/500	100	500	16	20	18	100	6.5
L-10-100/600	100	600	16	20	18	100	7.7
L-12-70/400	70	400	16	24	18	120	4.7
L-12-100/450	100	450	16	24	18	120	5.8
L-12-100/500	100	500	16	24	18	120	6.2
L-12-100/600	100	600	16	24	18	120	7.7
L-16-100/400	100	400	18	26	20	160	5.9
L-16-100/450	100	450	18	26	20	160	6.8
L-16-100/500	100	500	18	26	20	160	7.4
L-16-100/600	100	600	18	26	20	160	8.9
LXV-10400/1	100	400	16	20	20	100	5.1
LXV-12400/1	100	400	16	24	24	120	5.8
LXV-16400/1	120	400	18	26	26	160	7.5
