| Type | Rated voltage （KV) | Rated mechanical load (kN) | H(mm) Structure height (mm） | H insulating distance （mm） | Min nominal creepage distance （mm） | Diameter of shed （mm） | 1min power frequency wet withstand voltage （KV） | Full wave lightning impulse withstand voltage (kV) | Umbrella (a number) |
| FXB-12/70CT | 12 | 70 | 370±15 | 210 | 480 | Φ99 | 42 | 95 | 4 |
| FXB-24/70CT | 24 | 70 | 464+15 | 304 | 700 | Φ99 | 60 | 145 | 6 |
| FXB-36/70CT | 36 | 70 | 558+15 | 398 | 940 | Φ99 | 95 | 200 | 8 |
| FXB1-12/70CT | 12 | 70 | 356+15 | 183 | 450 | Φ99 | 42 | 95 | 4 |
| FXB1-24/70CT | 24 | 70 | 464+15 | 269 | 680 | Φ99 | 60 | 145 | 6 |
| FXB1-36/70CT | 36 | 70 | 558+15 | 371 | 900 | Φ99 | 95 | 200 | 8 |
| FXBW-12/70CT | 12 | 70 | 330+15 | 170 | 400 | Φ124/Φ90 | 42 | 95 | 3 |
| FXBW-12/70SB | 12 | 70 | 310+15 | 170 | 400 | Φ124/Φ90 | 42 | 95 | 3 |
| FXBW-12/70EE | 12 | 70 | 370+15 | 170 | 400 | Φ124/Φ90 | 42 | 95 | 3 |
| FXBW-24/70CT | 26 | 70 | 440±15 | 280 | 770 | Φ148/Φ113 | 42 | 95 | 5 |
| FXBW-24/70SB | 26 | 70 | 425+15 | 280 | 770 | Φ148/Φ113 | 42 | 95 | 5 |
| FXBW-24/70EE | 26 | 70 | 480±15 | 280 | 770 | Φ148/Φ113 | 42 | 95 | 5 |
| FXBW-36/70CT | 36 | 70 | 530+15 | 370 | 1015 | Φ148/Φ113 | 95 | 200 | 7 |
| FXBW-36/70SB | 36 | 70 | 515+15 | 370 | 1015 | Φ148/Φ113 | 95 | 200 | 7 |
| FXBW-36/70EE | 36 | 70 | 570+15 | 370 | 1015 | Φ148/Φ113 | 95 | 200 | 7 |
| FXBW-36/70CT | 36 | 70 | 620+15 | 460 | 1300 | Φ148/Φ113 | 110 | 250 | 9 |
| FXBW-36/70SB | 36 | 70 | 620±15 | 460 | 1300 | Φ148/Φ113 | 110 | 250 | 9 |
| FXBW-36/70EE | 36 | 70 | 660±15 | 460 | 1300 | Φ148/Φ113 | 110 | 250 | 9 |
| CS70YT-170/1015 | 36 | 70 | 465+15 | 325 | 1015 | Φ120 | 70 | 170 | 10 |

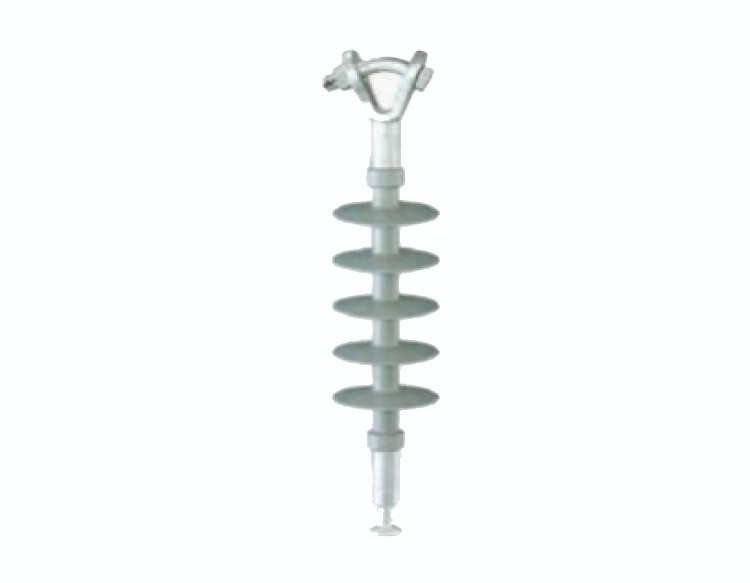

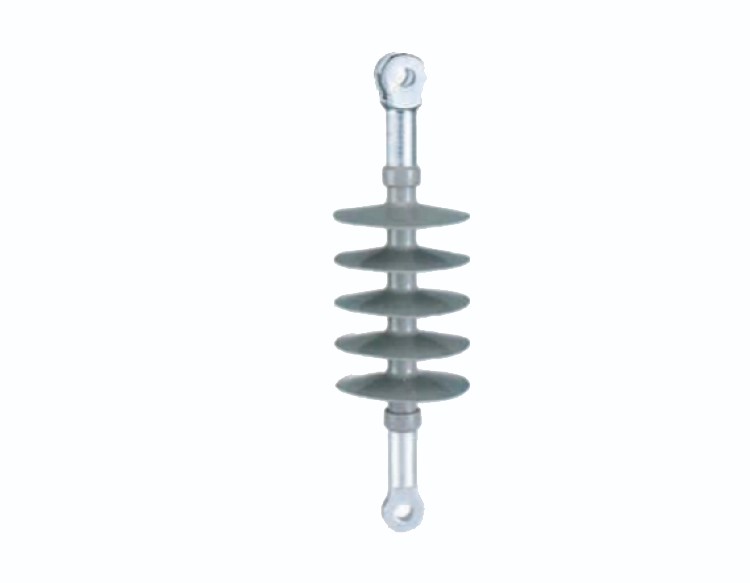

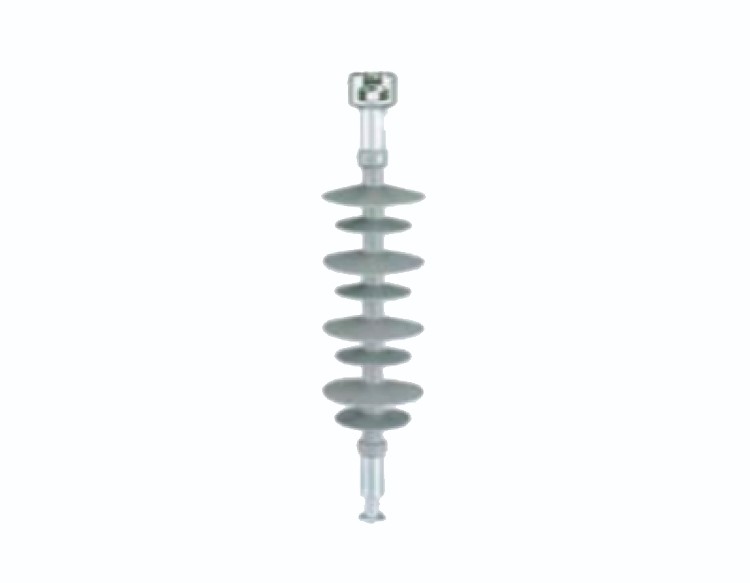

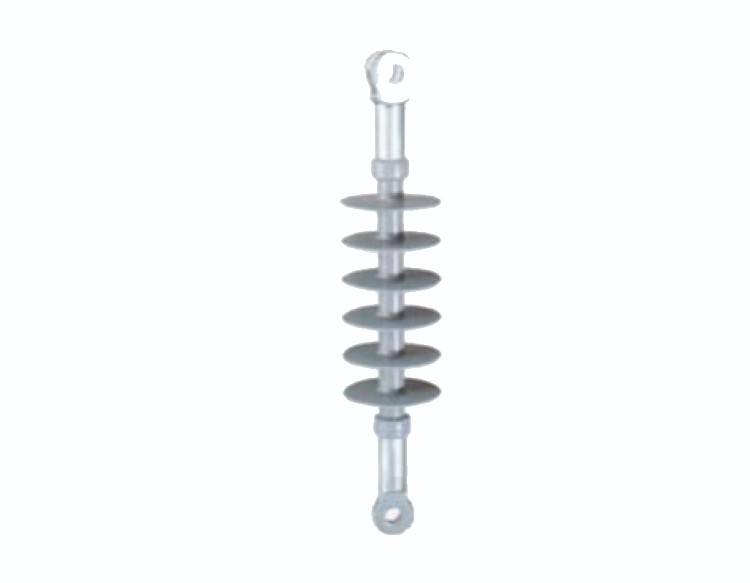

1.Material:They consist of a fiberglass rod core, surrounded by weather-resistant rubber material, typically silicone.
2.Features:
1)This combination provides high mechanical strength and excellent insulation properties, making them suitable for high-voltage power transmission lines.
2)They are lightweight, resistant to impact, and have good performance in extreme weather conditions.
3.Advantages:
1)Lightweight: Easier to handle and install compared to ceramic or glass insulators.
2)High Strength: Fiberglass core provides excellent mechanical strength.
3)Weather Resistance: Perform well under extreme conditions without degradation.
4)Hydrophobic: Silicone rubber sheds water, preventing wet flashovers.
5)Vandalism Resistant: Less appealing to vandals due to lack of scrap value.
6)Low Maintenance: Do not require cleaning as often as other types.
