| Spec&Type | Rated voltage | Rated bending load | Structure height (mm) | (mm) Min arc distance | Minnominal creepage distance | Full wave lightning impulse withst and voltage (kv） | imin power frequency wet withstand voltage |

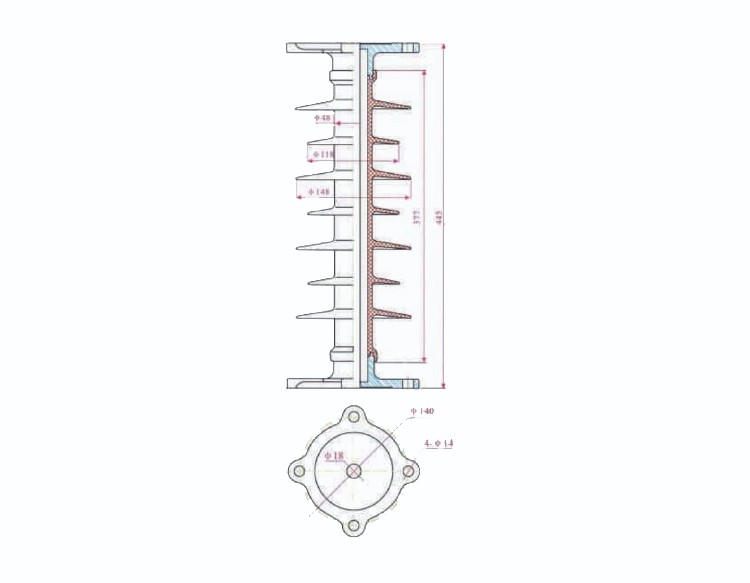

| FZGQ-35/5 | 35 | 5 | 445 | 353 | 930 | 185 | 80 |

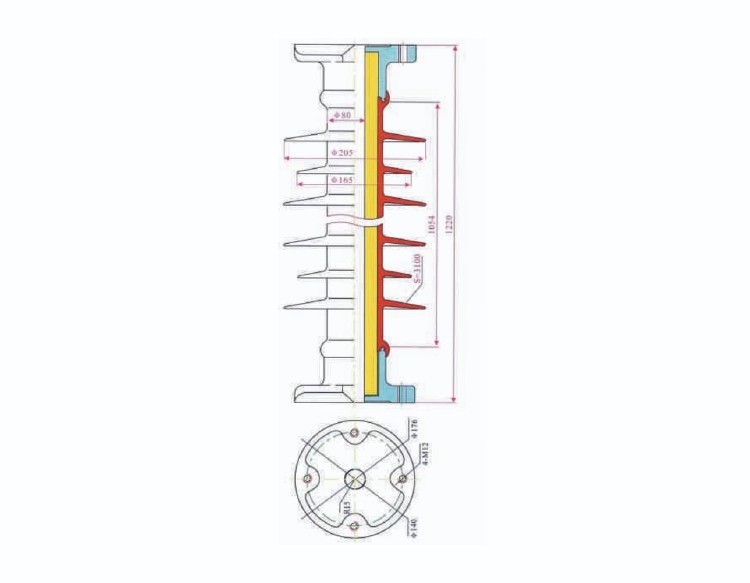

| FZGQ-110/8 | 110 | 8 | 1270 | 1050 | 2900 | 550 | 230 |
| FxGQ-220/6 | 220 | 6 | 2700 | 2000 | 6600 | 1000 | 395 |
1.Purpose:
1)It's used to support and separate electrical conductors without allowing current through itself.
2)The optical fibers can be used for communication purposes or for monitoring the integrity of the power line.
2.Advantages:
1)High Mechanical Strength: They can withstand high loads without damage.
2)Excellent Insulation: Provides superior electrical insulation properties.
3)Lightweight: Easier to handle and install compared to traditional insulators.
4)Corrosion Resistance: Not susceptible to corrosion, which extends their lifespan.
5)Integrated Communication: The optical fibers allow for real-time monitoring and data transmission.
