| Spe.&Type | System voltage (KV) | Rated mechanical bending load KN | Rated mechanical tension load KN | Structure of coupling marks | H(mm) Structurel height (mm) | Min arc distance H(mm) | Min nominal creepage distance (mm) | Full wave lightning impulse withstand voltage(peak value) not less than (kV) | 1min power frequency wet withstand voltage not less than (kv) |
| FSP-35/0.4-670TQ | 35 | 0.4 | 100 | 16 | 670土15 | 509 | 1200 | 230 | 95 |
| FSP-35/0.4-730TQ | 35 | 0.4 | 100 | 16 | 730土15 | 509 | 1200 | 230 | 95 |
| FSP-66/0.8-940TQ | 66 | 0.8 | 100 | 16 | 940土15 | 730 | 2250 | 410 | 185 |
| FSP-66/0.8-940AQ | 66 | 0.8 | 100 | 16 | 940土15 | 730 | 2250 | 410 | 185 |
| FSP-110/0.8-1340TQ | 110 | 0.8 | 100 | 16 | 1340土15 | 1170 | 3400 | 550 | 230 |
| FSP-110/0.8-1440AQ | 110 | 0.8 | 100 | 16 | 1440土15 | 1170 | 3400 | 550 | 230 |
| FSP-220/0.8-2350TQ | 220 | 0.8 | 100 | 16 | 2350土30 | 2280 | 6800 | 1000 | 395 |
| FSP-220/0.8-2350AQ | 220 | 0.8 | 100 | 16 | 2350+30 | 2150 | 6800 | 1000 | 395 |
| FSP-220/0.8-2350AQ | 220 | 0.8 | 100 | 16 | 2350士30 | 2150 | 6800 | 1000 | 395 |
| Anti-windage insulator type | Upper end ring for LV | Bottom end ring for HV | note | |||
| type | note | type | note | |||
| FSP-110/0.8 | FJH-110/100F | Common type | ||||
| FSP-110/0.8 | FJH-220/10OF-FN | Bird proof type | FJH-110/100F | Common type | ||
| FSP-220/0.8 | FJH-220/10OF | Common type | FJH-220/100F | Common type | ||
| FSP-220/0.8 | FJH-220/100F-FN | Bird proof type | FJH-220/100F | Common type | ||

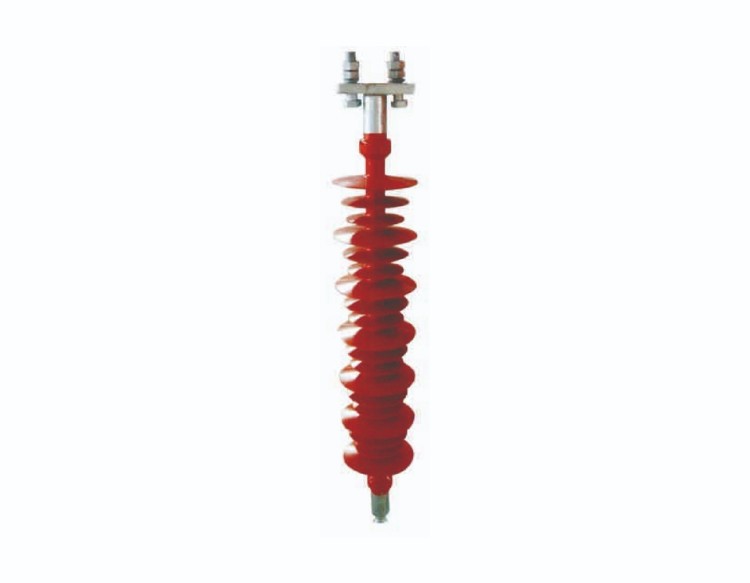

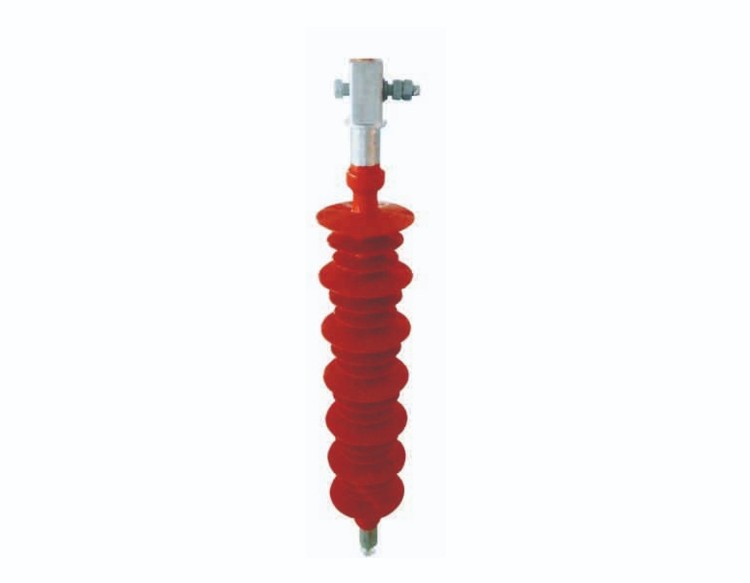

1.Material:These insulators are made of materials like silicone rubber, which provides excellent performance against pollution flashover.
2.Application:They are particularly useful in areas with high wind speeds and are used in electrical power transmission and distribution systems.
