| Type | Fig No. | Main Dimansions | Transverse strength | Low frequency voltage | ||||||
| H | D | d | d1 | d2 | R | Dry | Wei | |||

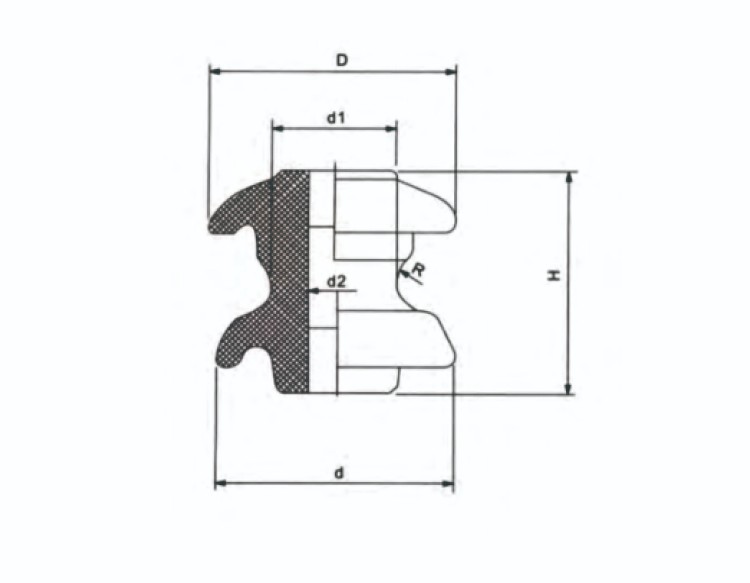

| ED-1 | 1 | 90 | 100 | 95 | 50 | 22 | 12 | 1.2 | 22 | 10 |
| ED-2 | 1 | 75 | 80 | 75 | 42 | 20 | 10 | 1 | 18 | 9 |
| ED-3 | 1 | 65 | 70 | 65 | 36 | 16 | 8 | 0.8 | 16 | 7 |
| ED-4 | 1 | 50 | 60 | 55 | 30 | 16 | 6 | 0.5 | 14 | 6 |

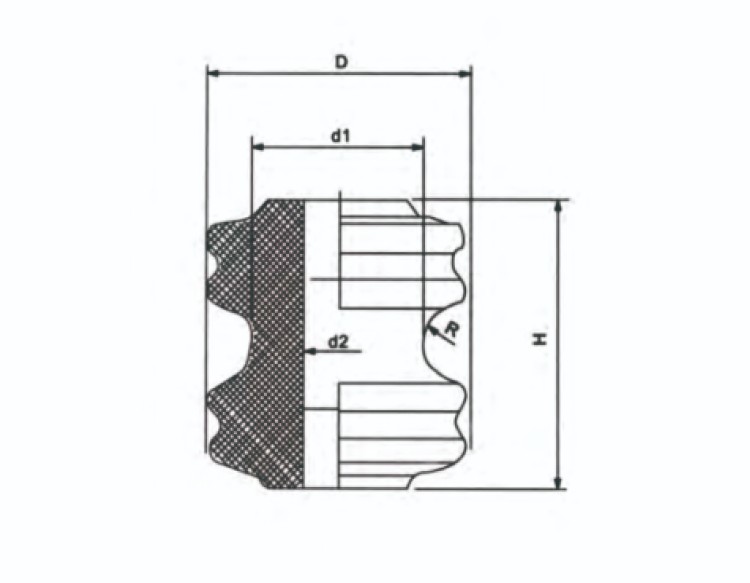

| EX-1 | 2 | 90 | 85 | - | 55 | 22 | 12 | 1.5 | 22 | 9 |
| EX-2 | 2 | 75 | 70 | - | 45 | 20 | 10 | 0.2 | 18 | 8 |
| EX-3 | 2 | 65 | 65 | - | 40 | 16 | 8 | 1 | 16 | 6 |
| EX-4 | 2 | 50 | 55 | - | 35 | 16 | 6 | 0.7 | 14 | 5 |

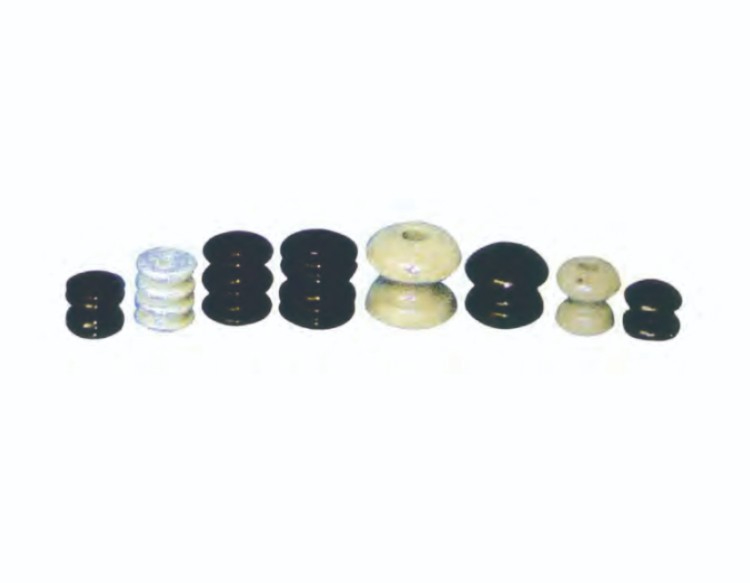

1.GB Shackle Insulators are small, generally used for low voltage applications, and can be found on distribution lines. They are designed to change the direction of the wire or to support a dead-end or terminal pole. The "GB" indicates compliance with Chinese standards.
2.GB Spool Insulators, similar to shackle insulators, are used in low-voltage distribution networks. They are designed to support wires on crossarms of utility poles. The spool shape allows for easy wire wrapping and unwrapping during installation or maintenance.
