| Type | XWP2-60/C | XWP2-70/T | XWP2-70/C | XWP-100 | XWP-160 | |

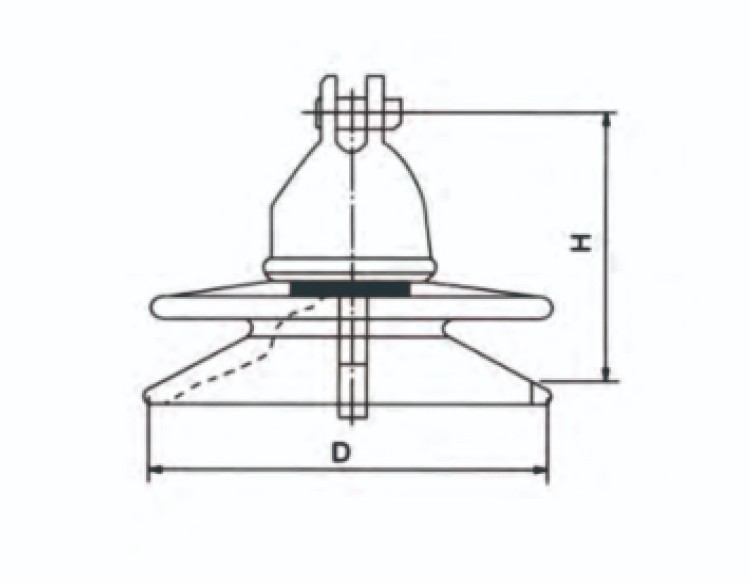

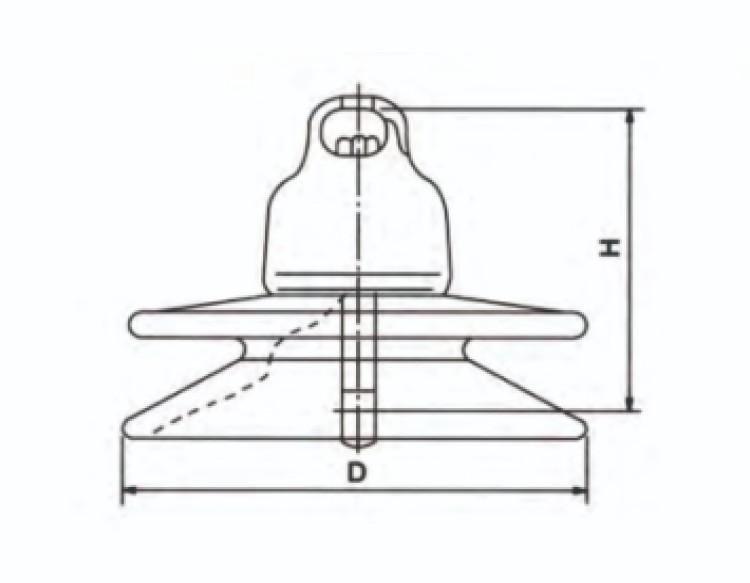

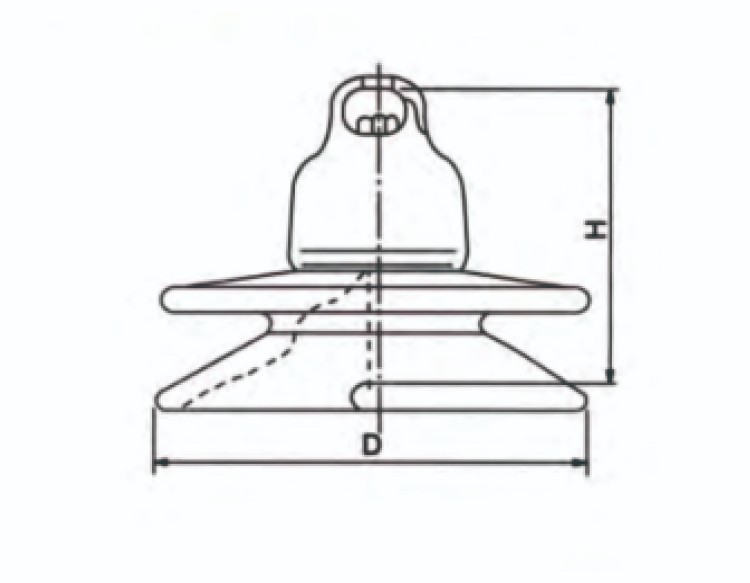

| Fig | 6/4 | 5 | 6/4 | 6 | 6 | |
| Main Dimansions (mm) | Heigh Strutre Declarate | 146 | 146 | 146 | 1601/146 | 155/146 |
| Distance Declarative Ceramic | 255 | 255 | 255 | 255/280 | 280/255 | |
| Minimum Creepage Distance | 400 | 400 | 400 | 400 | 400 | |
| Coupling To Type | 16/16C | - | 16/16C | 16 | 20 | |
| Electromechanical Failing Load ( KV ) | 70 | 70 | 70 | 100 | 160 | |
| Full Wave Impulse Flashover ( peak ) ( KV ) | 120 | 120 | 120 | 120 | 120 | |
| Minimum Wet power Frenliency Flashover ( r . m s ) ( kv ) minimum | 45 | 45 | 45 | 45 | 45 | |
| Power Frequency Puncture Voltage ( KV ) | 120 | 110 | 110 | 120 | 120 | |
| Weight ( kg ) | 7.2 | 7.2 | 8 | 8 | 9 | |

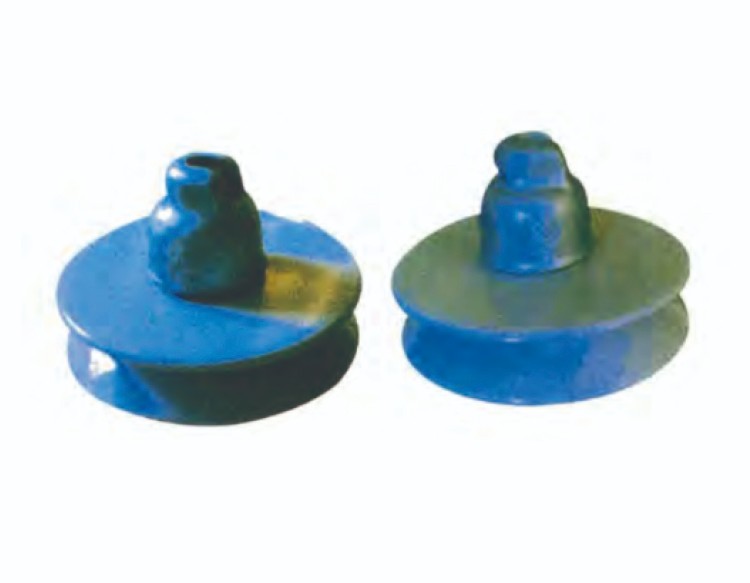

1.GB Suspension Type Anti-Pollution Insulators for high voltage are designed to perform under conditions where pollution, such as industrial contaminants or salt from coastal areas, can cause flashovers across the surface of the insulator.
2.These insulators have special shapes and materials that increase leakage distance and reduce the risk of contamination build-up, ensuring reliable performance in dirty environments.
3.They are commonly used in high-voltage transmission lines where maintaining insulation is critical despite environmental challenges.
