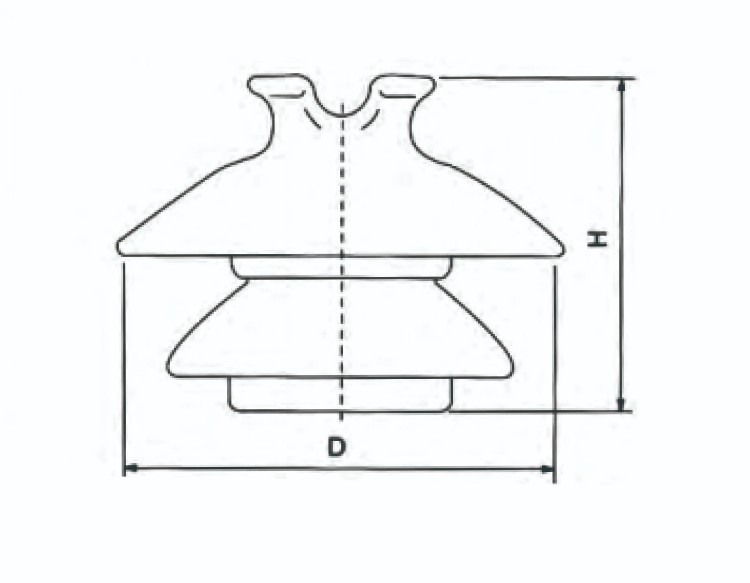

| Type | Fig | Main dimension mm | Creepage Distance | Lighting Impuse Withstnd Voltage KV | Wet Power Frequaency Withstand Voltage KV | Minimum Bending Failing Load KN | Recom Mended Pin Type | Designation | |
| H | D | ||||||||

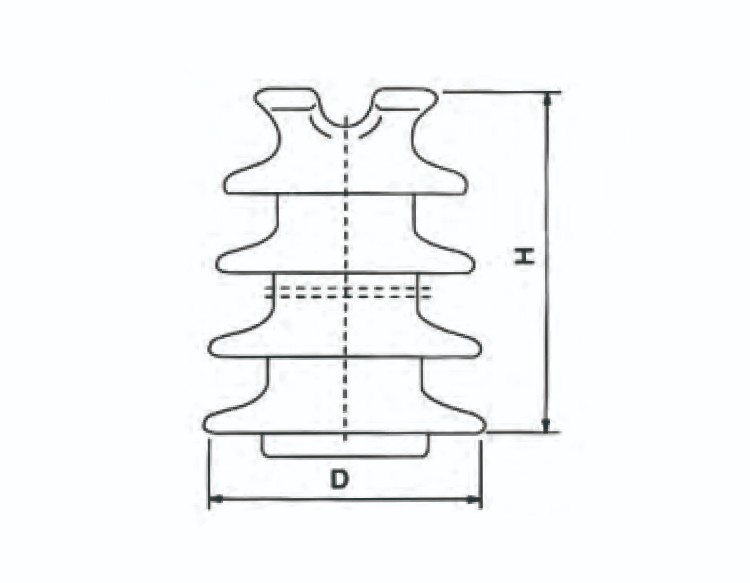

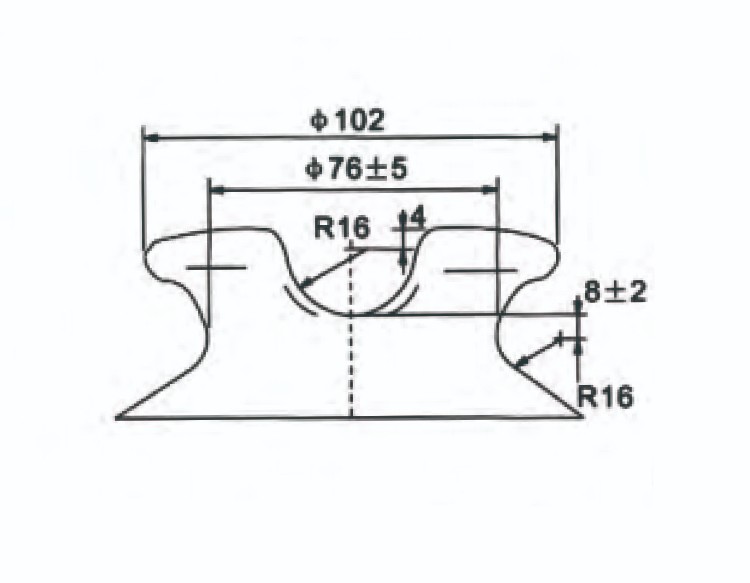

| SLP/11/180 | 1 | 110 | 150 | 180 | 105 | 30 | 7 | A/130/7 | 180S7 |
| ALP/11/275 | 2 | 160 | 150 | 275 | 105 | 30 | 7 | C/150/7 | 275A7 |

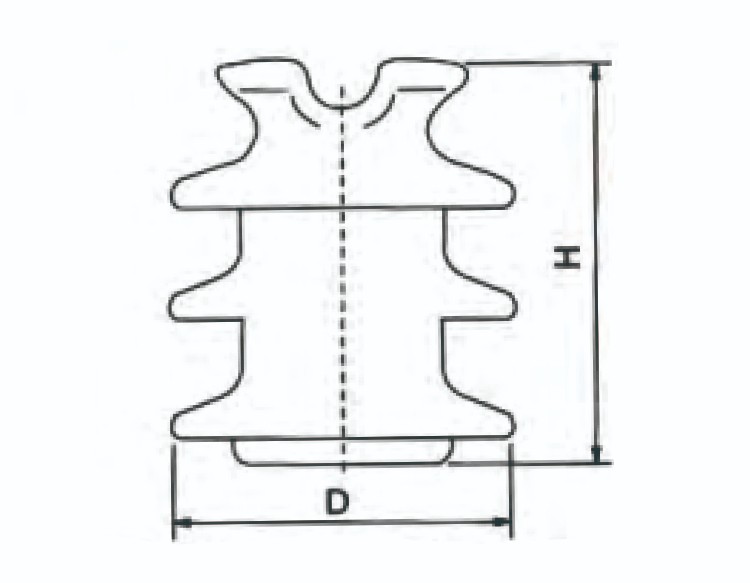

| ALP/22/450 | 3 | 200 | 160 | 450 | 150 | 50 | 11 | C/200/11 | 450A11 |
| ALP/22/490 | 3 | 250 | 165 | 490 | 160 | 50 | 11 | C/200/11 | 490A11 |

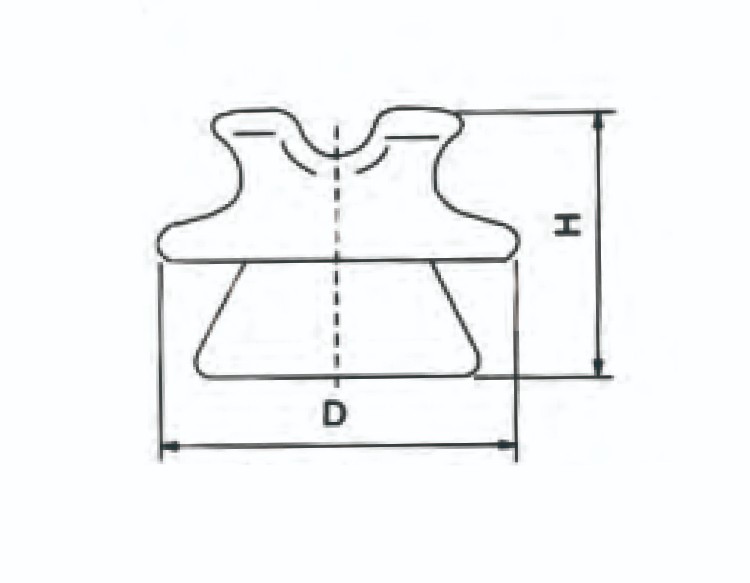

| FLP/22/480 | 4 | 200 | 250 | 480 | 150 | 50 | 11 | C/150/11 | 480F11 |
| ALP/22/520 | 3 | 210 | 200 | 520 | 150 | 50 | 11 | C/200/11 | 520F11 |
| ALP/33/710 | 3 | 265 | 220 | 710 | 220 | 90 | 11 | C/300/7 | 710A11 |
| ALP/33/92 | 3 | 320 | 240 | 920 | 220 | 90 | 11 | C/300/7 | 920A11 |

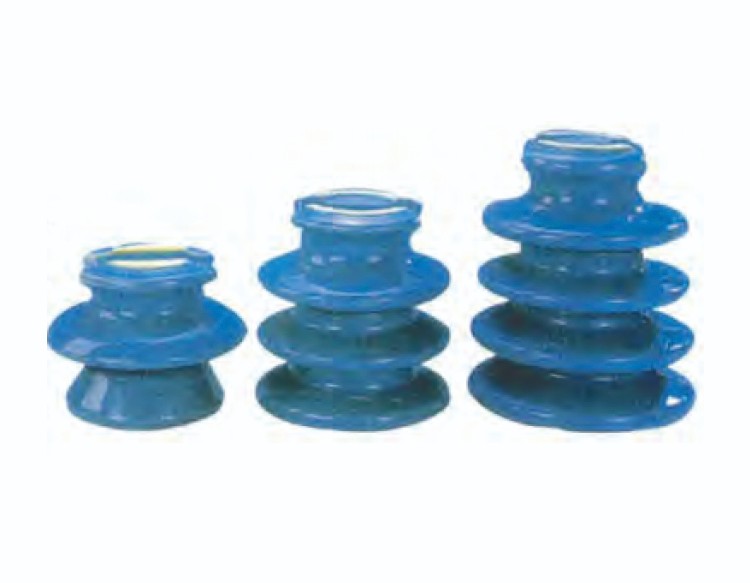

Here are some key details:
1.Design: These insulators are designed with a sufficient creepage distance to prevent electrical leakage. They are simple to build and require very little maintenance.
2.Applications: They are used for the high-voltage distribution line. They have the flexibility to be utilized in both vertical and horizontal orientations.
3.Voltage: The increased size, weight, and cost of pin insulator put a limit to its use above 66kV. Therefore, the suspension insulators are used for high voltage work.
4.Types: High voltage pin insulators include P-6T (M), P-10T (M), PQ-10T (M), P-15T (M), P-20T (M), PQ-20T (M), P-35T (M) and other models.
