IEC Anti-Pollution Procelain Disc Suspension Insulators

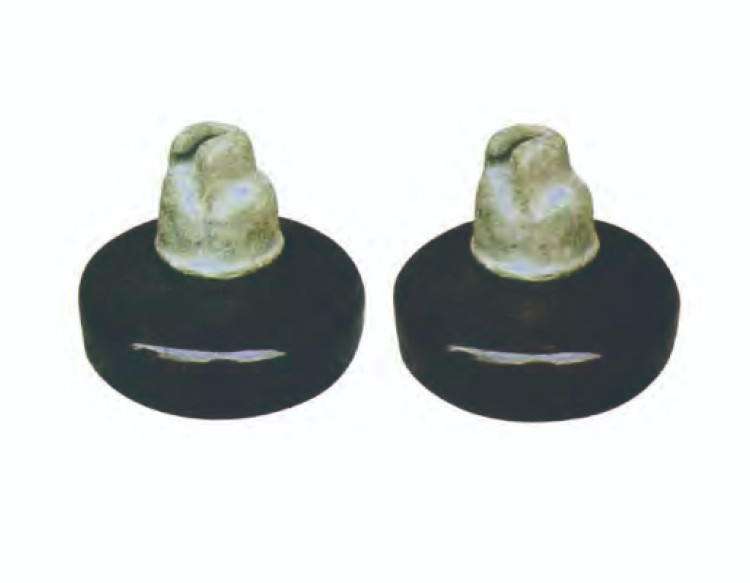

IEC Anti-Pollution Porcelain Disc Suspension Insulators are a specific type of insulators designed for use in high-voltage transmission lines in areas with high pollution levels. They are characterized by their circular disc shape and are made from porcelain, a ceramic material known for its insulating capabilities.

Cat.No.	Fig.No.	Coup-Ling size	Main Demension in( mm)		Leakage Distance (mm)	Combined M&E Strength (KN)	Radio Influnce Voltage		Powe Frequency Puncture voltage KV

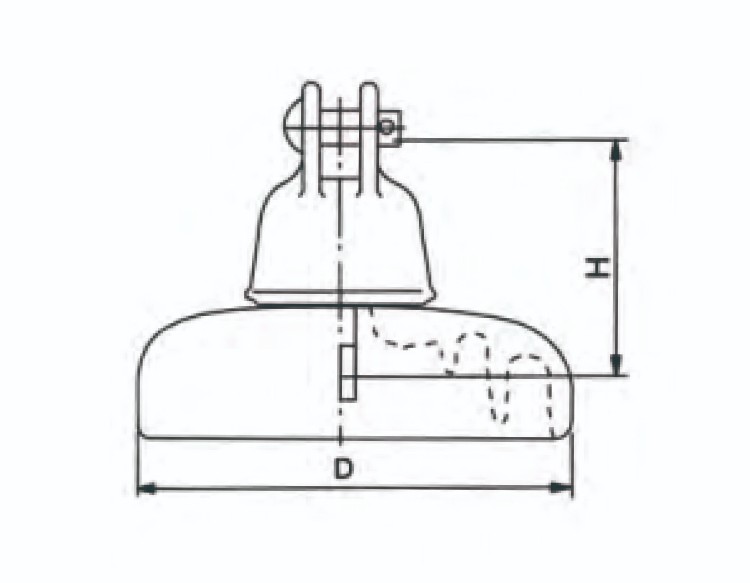

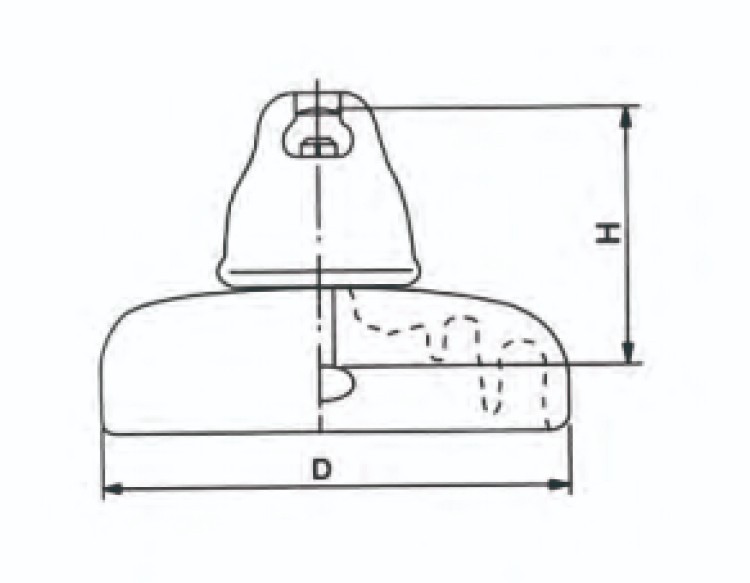

Cat.No.	Fig.No.	Coup-Ling size	D	H	Leakage Distance (mm)	Combined M&E Strength (KN)	1 Minute wet o power frequency KV	Lighting impluse KV	Powe Frequency Puncture voltage KV
XHP-70	1	6C	255	146	430	70	42	120	120
XHP-70C	2	16C	255	146	430	70	42	120	120
XHP-80	1	16	255	146	430	80	42	120	120
XHP-80C	2	16C	255	146	430	80	42	120	120
XHP-100	1	16	255	146	430	100	45	120	120
XHP-100C	2	16C	255	146	430	100	45	120	120
XHP-120	1	16	255	160	430	120	45	120	120
XHP-120C	2	16C	255	160	430	120	45	120	120
XHP-125	1	20	280	160	430	125	45	120	120
XHP-125C	2	19C	280	160	430	125	45	120	120
XHP-160	1	20	300	160	450	160	45	130	120
XHP-160C	2	19C	300	170	450	160	45	130	120
XHP-210	1	20	300	170	480	210	45	130	120
XHP-210C	2	22C	300	178	480	210	45	130	120
XHP-300	1	24	320	195	480	300	45	130	120
XHP-400	1	28	380	220	550	400	50	140	140

Here are some key details about these insulators:

1.Design: These insulators have a special design to combat the effects of pollution. This includes a larger surface area to increase the leakage distance, which helps to prevent flashovers caused by surface contamination.

2.Standards: They are designed according to the International Electrotechnical Commission (IEC) standards.

3.Applications: They are usually connected and assembled into insulator string and used on different levels of line voltage.
