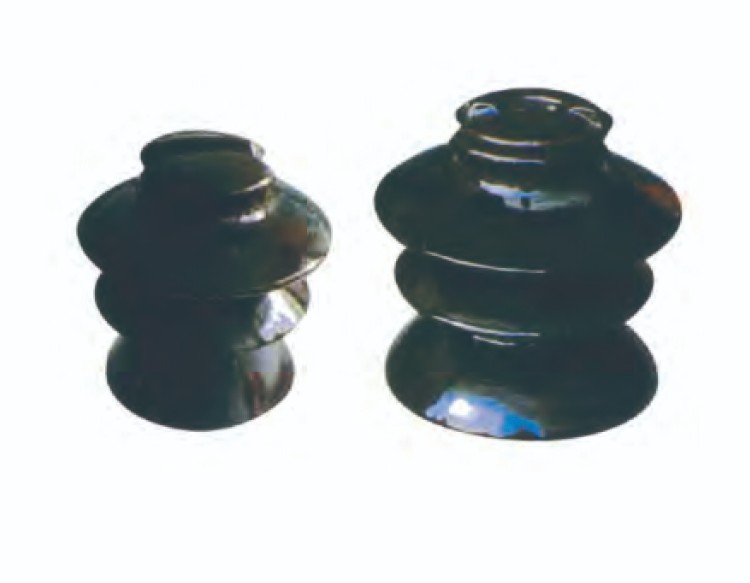

Din Pin Type Insulators For High Voltage

Pin insulators are designed to provide line support. The functions of these insulators is to support the conductor directly on the head or neck of the insulator (top and side grooves). Our pin insulators are designed and
manufactured by DIN standard for insuring the insulators' electrical and mechanical performance, as well as all
dimensionalspecifications and requirements.

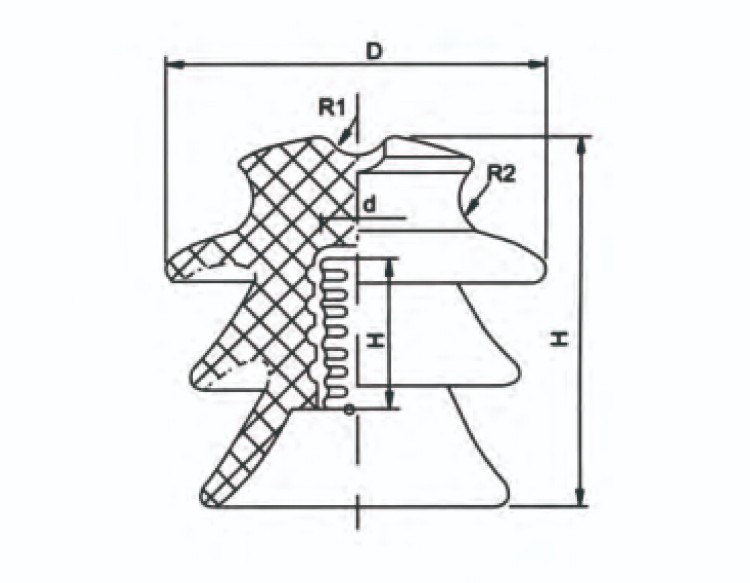

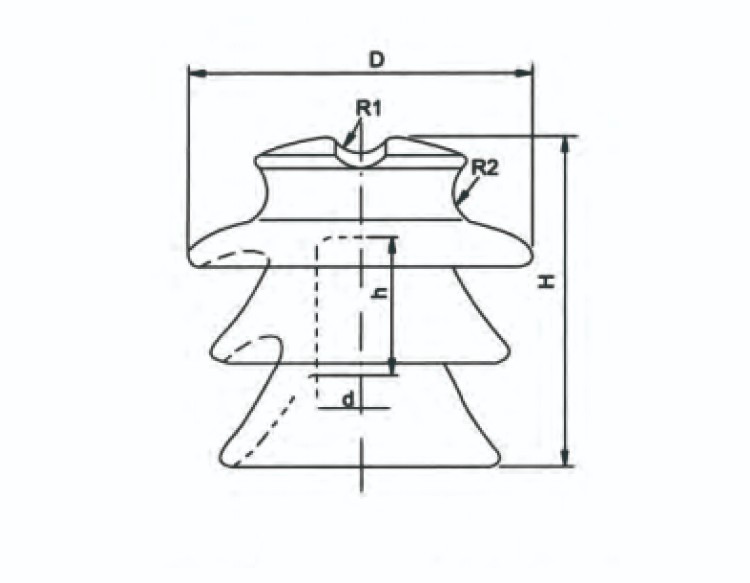

Fig No.			1	1	1	2
TYPE			St-10/J	st-15/J	St-20/J	P-20-D
Main Dimansions ( mm )	H		130	150	185	185
	h		55	60	65	52.63
	d		135	150	175	175
	d		31	31	35	27.78
	R1		10	10	10	10
	R2		12.5	12.5	12.5	12.5
Normal voltage ( kV )			10	15	20	20
Creepage Distance ( mm )			240	270	340	340
Power-Frequency puncture voltage ( kV )			110	120	140	140
Electronical Faling load ( KN )			12	12	14.7	14.7
Flashover ( min )	Power Frequency Voltage	Dry ( kv )	70	75	90	80
	Power Frequency Voltage	Wet ( kv )	42	53	65	50
	50% Critical Impulse		100	110	130	130
Weight ( kg )			1.5	2.7	3.4	3.8

Festures:

1.Excellent electrical performance

2.Unbreakable and light weight

3.Good heat resistance and cold resistance

4.Good chemical stability

5.High rigidity and toughness

6.Easiest handing and transportation

7.Water repelling surface

8.Long service life

9.Non-toxic, non-standing and recyclable
