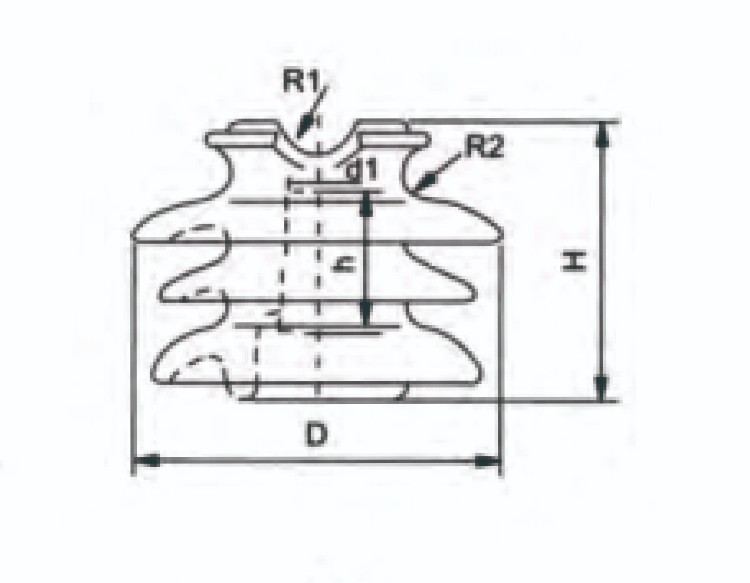

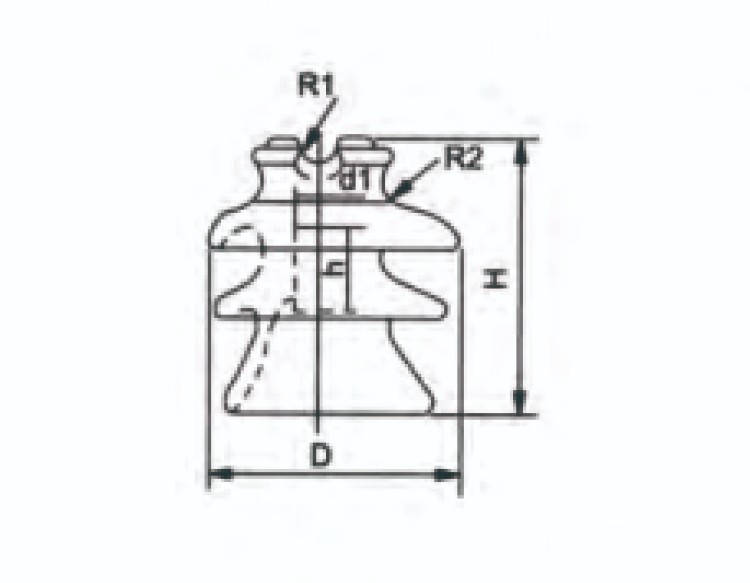

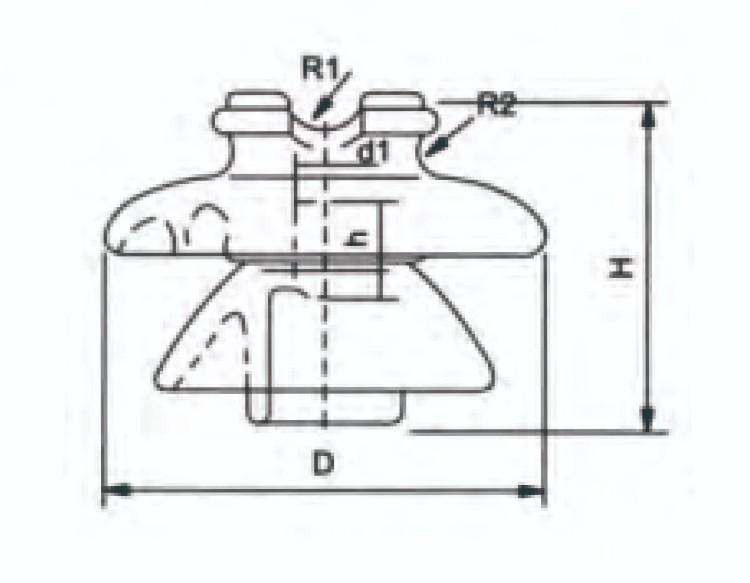

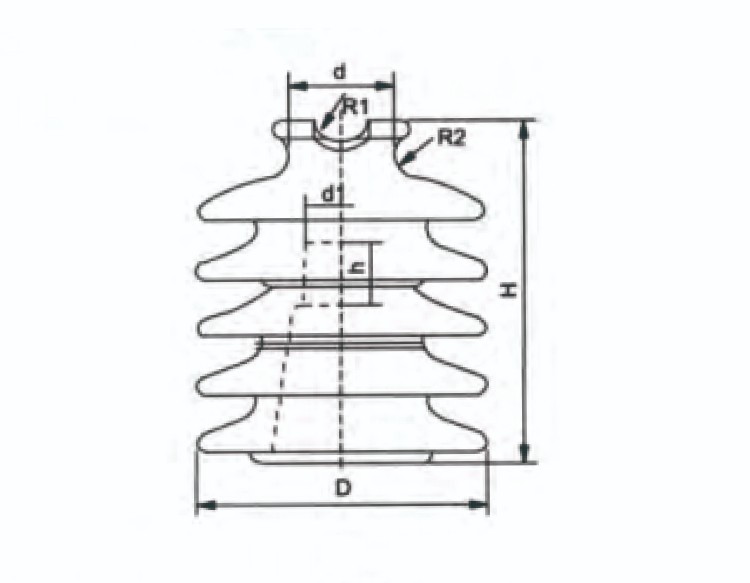

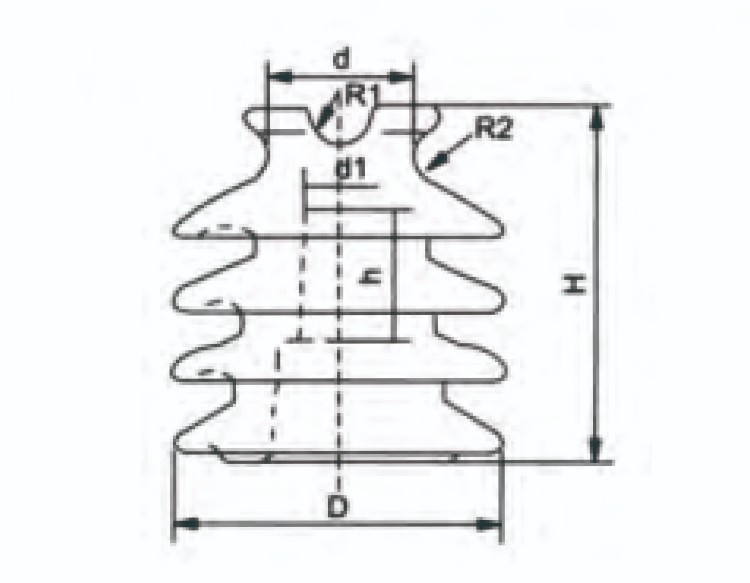

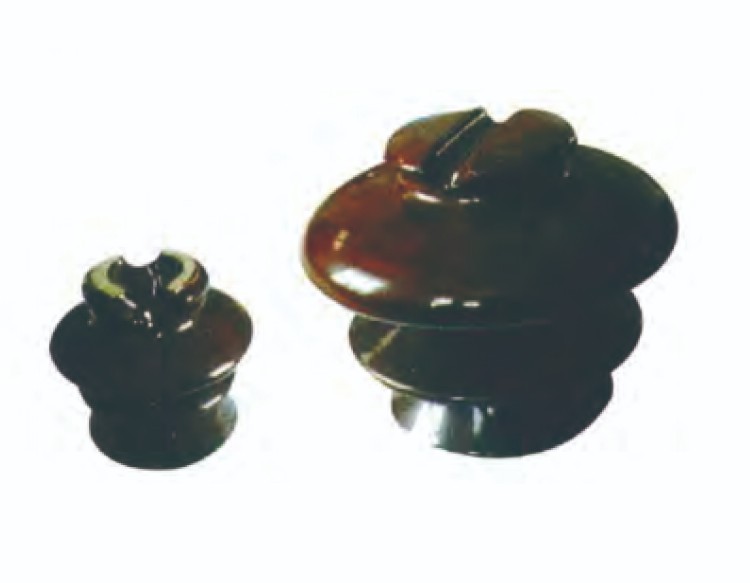

| Cat.No. | Fig.No. | Main Demension in (mm) | Gteepage Distance ( mm) | Cantilever Strength 1b ( KN ) | Withstand Voltage | Power Frequency Puncture Voltage kV | Radio Influence Voltage | Used Spindles | ||||||||
| D | H | d1 | h | R1 | R2 | d | One minute Wet power Frequency Voltage KV | Dry Impulse Withstand Voltage ( peak ) KV | Test Voltage To Ground kV | Max Riv At 1 MHz V | ||||||
| P-11-Y | 1 | 140 | 133 | 18.29 | 48 | 13 | 9.5 | 240 | 11 | 45 | 80 | 150 | 15 | 8000/100 | Small steel head | |
| P-15-Y | 1 | 152 | 137 | 18.29 | 48 | 13 | 12.7 | 298 | 11 | 50 | 95 | 450 | 15 | 8000/100 | ||
| P-22-Y | 2 | 230 | 165 | 27.78 | 52.63 | 19 | 14.3 | 432 | 11 | 70 | 125 | 200 | 22 | 12000/100 | Large steel head | |
| P-33-Y | 3 | 279 | 244 | 27.78 | 52.63 | 19 | 13 | 630 | 13.8 | 90 | 170 | 210 | 30 | 16000/100 | ||
| Pw-15-Y | 4 | 170 | 182 | 52.63 | 16 | 16 | 76 | 432 | 11 | 50 | 95 | 150 | 22 | 12000/100 | ||
| Pw-22-Y | 5 | 205 | 255 | 52.63 | 16 | 16 | 76 | 673 | 11 | 70 | 125 | 200 | 30 | 16000/100 | ||
| Pw-33-Y | 5 | 240 | 320 | 52.63 | 16 | 16 | 76 | 851 | 11 | 90 | 170 | 210 | 44 | 25000/100 | ||
Here are some details about these insulators:
1.Insulator Type: These insulators come in two types: Plain and Radio Freed.
2.Voltage Rating: The voltage rating for these insulators is 7.2 kV.
3.Leakage Distance: The leakage distance is 4 inches (102 mm) for some models and 5 inches (127 mm) for others.
4.Dry Arcing Distance: The dry arcing distance varies between 2-1/4 inches (57 mm) and 3-3/8 inches (86 mm).
5.Average Flashover Voltage: The average flashover voltage also varies depending on whether the conditions are dry or wet, and whether the impulse is low-frequency or critical.
6.Radio-Influence Voltage Data: The test voltage to ground is 5 kV, and the maximum RIV at 1,000kHz is between 2,500 μV and 50 μV.
7.Net Weight: The net weight of these insulators ranges from 1.2 lbs to 1.4 lbs.
