| Name | Product code | Metric diameterl mm | lnch diameter/in | Metric length/m | Inch length/ft. | Unit weight/ kg/m | Model NO.code |
| Copper bonded steel ground rod | 11 | 8.47 | （1/3） | 2.44 | 8 | 0.45 | 111308 |
| 11 | 9.5 | （3/8） | 2.44 | 8 | 0.57 | 113808 | |
| 11 | 12.7 | （1/2） | 2.44 | 8 | 1 | 111208 | |
| 11 | 12.7 | （1/2） | 3.05 | 10 | 1 | 111210 | |
| 11 | 14.2 | （5/8） | 1.52 | 5 | 1.26 | 115805 | |
| 11 | 14.2 | （5/8） | 1.83 | 6 | 1.26 | 115806 | |
| 11 | 14.2 | （5/8） | 2.44 | 8 | 1.26 | 115808 | |
| 11 | 14.2 | （5/8） | 3.05 | 10 | 1.26 | 115810 | |
| 11 | 14.2 | （5/8） | 3.66 | 12 | 1.26 | 115812 | |
| 11 | 14.2 | （5/8） | 4.56 | 15 | 1.26 | 115815 | |
| 11 | 17.2 | （3/4） | 1.83 | 6 | 1.84 | 113406 | |
| 11 | 17.2 | （3/4） | 2.44 | 8 | 1.84 | 113408 | |
| 11 | 17.2 | （3/4） | 3.05 | 10 | 1.84 | 113410 | |
| 11 | 17.2 | （3/4） | 3.66 | 12 | 1.84 | 113412 | |
| 11 | 17.2 | （3/4） | 4.56 | 15 | 1.84 | 113415 | |
| 11 | 23.1 | （4/4） | 3.05 | 10 | 3.31 | 114410 |
| Name | Product code | Metric diameterl （mm） | Size code | Metric length/m | Inch length/ft. | Copper tube wall thickness/mm | Model NO.code |
| Chemical ground rod | 12 | 53 | 53 | 1.52 | 5 | 2 | 125305 |
| 12 | 53 | 53 | 3.05 | 10 | 2 | 125310 |
| Name | Product code | Metric weight/kg | weight code | Packing code | Packing | Product feature | Model NO.code |
| Earthing compound | 13 | 25 | 25 | 1 | Barrel | Ordinary type | 132501 |
| 13 | 25 | 25 | 2 | In bags | Ordinary type | 132502 |
Here are some details about these rods:

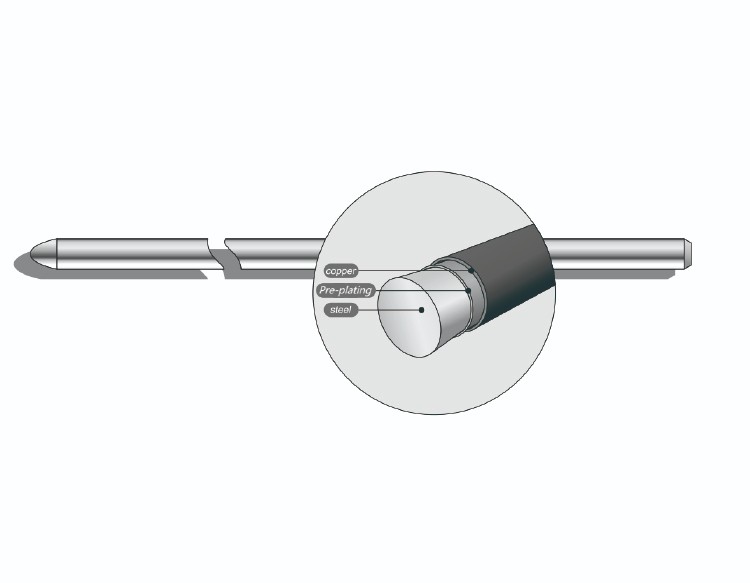

1.Material: These rods are made of high strength steel core with a molecularly bonded 99.9% pure copper layer. This unique manufacturing process includes drawing the steel rod to size before the copper bonding process begins, resulting in a straighter, harder steel core.
2.Manufacturing Process: nVent ERICO uses a continuous electro-plating process over the steel core that results in a permanent molecular bond that provides decades of reliable performance.
3.Usage: These rods are a key component in an electrical grounding installation which dissipates any fault current safely into surrounding ground and helps prevent damage to facility, equipment and shock hazards to people and livestock in vicinity.
4.Length and Sizes: The lengths of these rods can be 4, 5, 6, 8, 10 feet and the sizes can be 1/2’‘, 5/8’’ & 3/4’'.
5.Copper Plating Thickness: The thickness of the copper layer is minimum 10 mil for all UL Listed rods which also ensures adequate corrosion protection for the rod.
