| Type | Rated voltage (kV) | Rated current (A) | Breaking current (kA) | Impulse voltage (kV) | Power frequency withstand voltage (kV) | Creepage distance (mm) | Weight (kg) | Dimension (cm) |
| HTHC1W-27/100 | 24-27 | 100 | 8000 | 150 | 65 | 540 | 4.2 | 51.5×38×11.5 |
| HTHC1W-27/100 | 24-27 | 200 | 10000 | 150 | 65 | 540 | 4.7 |
1.Purpose:It's designed to interrupt power supply when an electrical fault is detected, thereby safeguarding the electrical network and equipment connected to it.

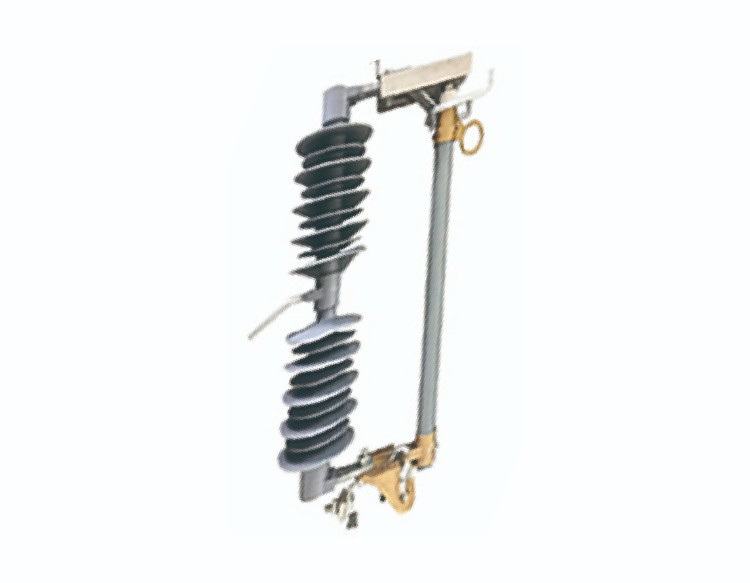

2.Works:Drop-out fuse cutouts feature a fuse element that will melt under fault conditions, causing the cutout to drop open and disconnect the faulty circuit.
3.Specifications:
1)Rated Voltage:24-27kV
2)Rated Current:100A/200A
3)Breaking Current:8000A/10000A
4)Impulse Voltage:150kV
5)Power-Frequency Withstand Voltage:65kV
6)Creepage Distance:540mm
7)Weight:4.2/4.7kg
8)Dimensions:51.5cm x 38cm x 11.5cm
This model is designed to handle high-voltage applications and provides reliable protection with its robust specifications.
