| Type | Rated voltage (kV) | Rated current (A) | Breaking current (kA) | Impulse voltage (kV) | Power frequency withstand voltage (kV) | Creepage distance (mm) | Weight (kg) | Dimension (cm) |
| THC3-33/100 | 33-36 | 100 | 8000 | 170 | 70 | 720 | 12.5 | 66×37.5×14 |
| THC3-33/200 | 33-36 | 200 | 10000 | 170 | 70 | 720 | 13 |

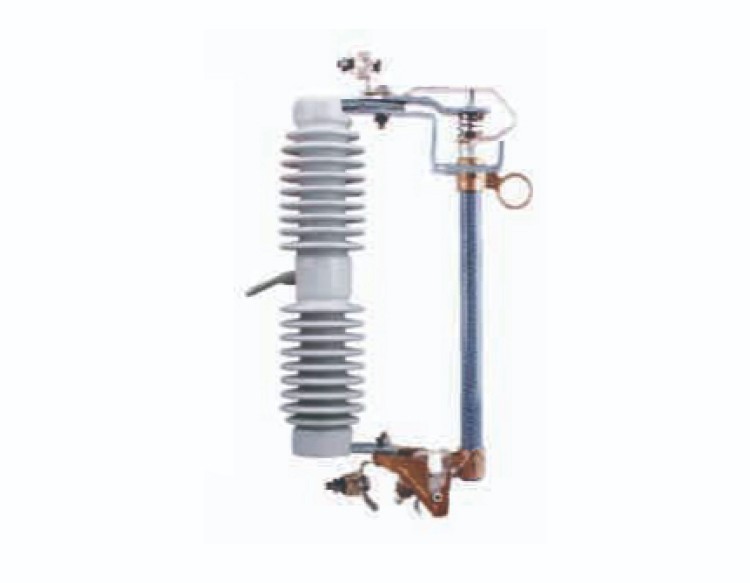

1.Purpose:A Drop-out Fuse Cutout is a protective device used on electrical power distribution networks. It's designed to protect transformers, lines, and cables from overcurrents by interrupting the electrical flow when a fault is detected.
2.The "drop-out" part of the name refers to the fuse's ability to physically drop or hang down after it has operated, signaling that it has functioned and needs replacement or resetting.
3.Application:This type of fuse cutout is typically mounted on poles and is used in both urban and rural settings to ensure the safety and reliability of electrical distribution.
