| Type | Rated voltage (kV) | Rated current (A) | Breaking current (kA) | Impulse voltage (kV) | Power frequency withstand voltage (kV) | Creepage distance (mm) | Weight (kg) | Dimension (cm) |
| RW13-24/100A | 24-27 | 100 | 8000 | 150 | 65 | 540 | 9.5 | 50×38.5×15.5 |
| RW13-24/200A | 24-27 | 200 | 10000 | 150 | 65 | 540 | 10 |

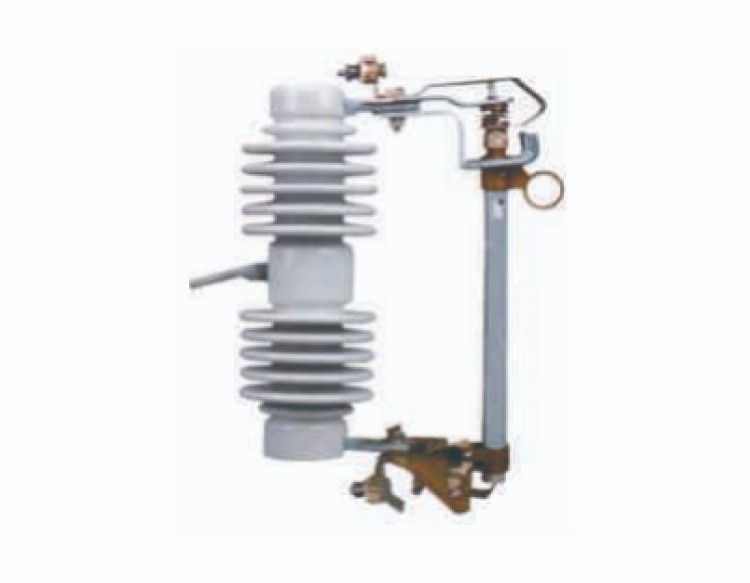

1.Features:
1)Rated voltage:24-27kV
2)Polymer construction:For durability and weather resistance
3)Application:Protects power lines and associated equipment.It's installed on the high voltage side of distribution transformers or on distribution line branches, serving as protection and equipment switching operation.
2.Installation:
1)Mounting:Secure the fuse cutout to a pole or support structure using brackets or clamps.
2)Connecting Terminals:Attach the terminals of the fuse cutout to the electrical system using appropriate connectors.
3)Fuse Link Installation:Insert the fuse link into the fuse holder of the cutout.
4)Safety Checks:Ensure all connections are secure and that the cutout is properly grounded.
5)Activation:Close the cutout to energize it, completing the installation.
