| Type | Rated voltage (kV) | Rated current (A) | Breaking current (kA) | Impulse voltage (kV) | Power frequency withstand voltage (kV) | Creepage distance (mm) | Weight (kg) | Dimension (cm) |
| RW13-15/100A | 15-24 | 100 | 8000 | 125 | 45 | 350 | 7.6 | 50×38×11.5 |
| RW13-15/200A | 15-24 | 200 | 10000 | 125 | 45 | 350 | 8 |

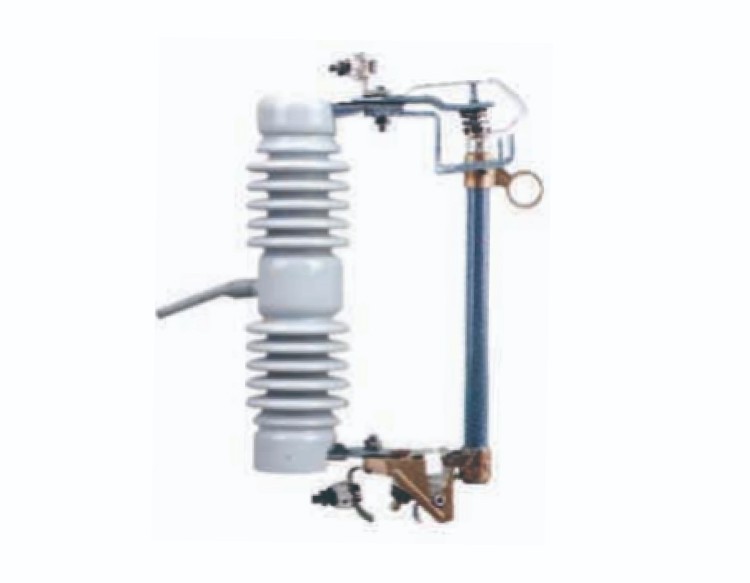

1.Purpose:It's designed to automatically 'cut out' or disconnect the power if there's too much current, which can happen during a short circuit or overload. This helps to prevent damage to the electrical system and reduce the risk of fires or other hazards.
2.Application:It's commonly used in high-voltage power distribution networks to ensure everything runs smoothly and safely.
