Drop-out Fuse Cutout-ABB-15

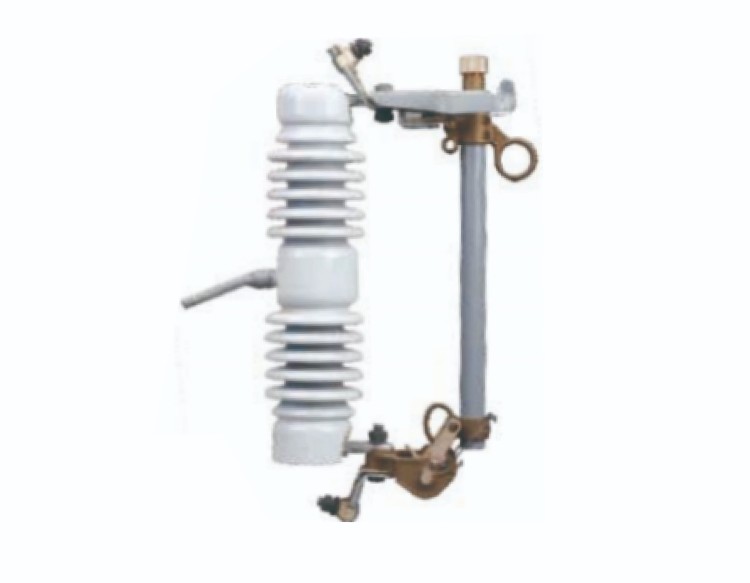

The ABB Drop-out Fuse Cutout-15 is a safety device used in electrical power distribution. It's designed to protect electrical circuits from damage caused by overcurrents or overload. It does this by 'cutting out' or interrupting the electrical flow when the current exceeds safe levels.

Type	Rated voltage (kV)	Rated current (A)	Breaking current (kA)	Impulse voltage (kV)	Power frequency withstand voltage (kV)	Creepage distance (mm)	Weight (kg)	Dimension (cm)
ABB-15/100A	15-24	100	8000	125	45	350	7.1	50×37×11.5
ABB-15/200A	15-24	200	10000	125	45	350	7.6	50×37×11.5

The ABB Drop-out Fuse Cutout-15 has the following key features:

1.Rated voltage:15-24kV

2.Rated current:100/200A

3.Available in two housing materials: porcelain and resin-fiberglass

4.Breaking current:8000/10000kA

5.Special designs for capacitor banks and distribution transformers
