| Type | Rated voltage (kV) | Rated current (A) | Breaking current (kA) | Impulse voltage (kV) | Power frequency withstand voltage (kV) | Creepage distance (mm) | Weight (kg) | Dimension (cm) |

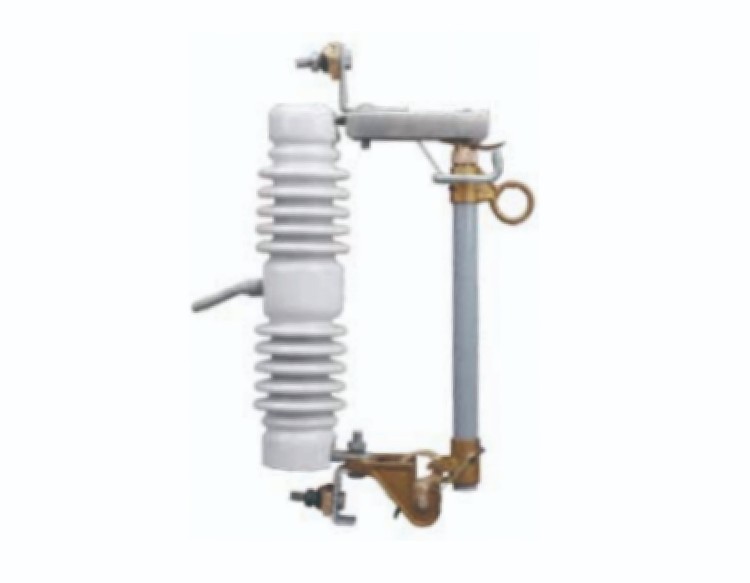

| RW12-15/100A | 15-24 | 100 | 8000 | 125 | 45 | 350 | 6.8 | 50×36×10.5 |
| RW12-15/200A | 15-24 | 200 | 10000 | 125 | 45 | 350 | 7.6 |
1.Specifications:
1)Rated Voltage: Up to 15kV
2)Rated Current: Up to 200A
3)Breaking Current: Industry-leading 10kA
4)Mechanical Operation Test: 500 times
5)Compliance: Meets IEC standards and has passed type tests from KERI laboratory, a member of STL.
It features high breaking capacity and is designed for outdoor use with durable materials for reliable performance in power distribution systems.
