| Type | Rated voltage (kV) | Rated current (A) | Breaking current (kA) | Impulse voltage (kV) | Power frequency withstand voltage (kV) | Creepage distance (mm) | Weight (kg) | Dimension (cm) |

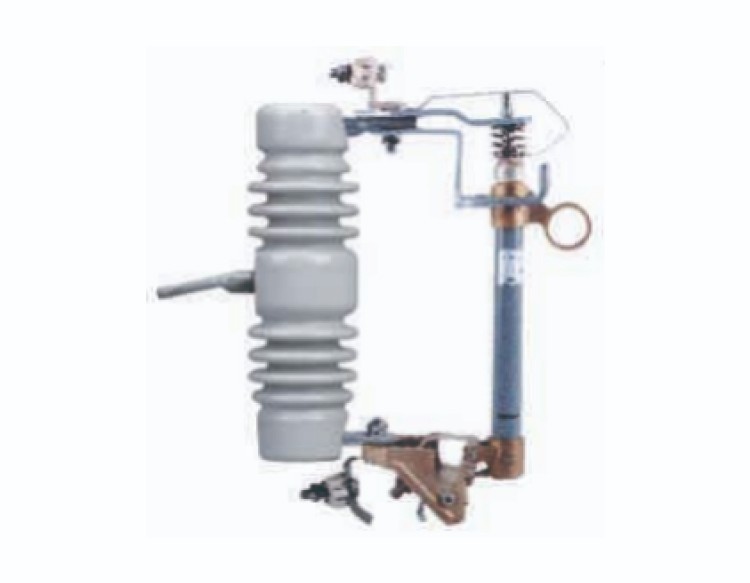

| RW13-12/100A | 12-15 | 100 | 8000 | 110 | 40 | 250 | 6.5 | 40.5×30×10.5 |
| RW13-12/200A | 12-15 | 200 | 10000 | 110 | 40 | 250 | 7 |
1.Features:
1)Voltage and Current Ratings: Designed to handle specific voltage levels and current ratings.
2)Housing Materials: Made from durable materials like porcelain or polymer to withstand environmental conditions.
3)Interrupting Capacity: Ability to interrupt high current faults, often up to several kiloamperes.
4)Ease of Operation: Designed for easy manual operation for fuse replacement or resetting after operation.
5)Visibility: Provides a clear visual indication when the fuse operates or blows due to a fault.
6)Arc-Extinguishing: Contains arc-quenching materials to safely extinguish the arc when the fuse operates.
These features ensure reliable protection and easy maintenance for power distribution systems.
