| Type | Rated voltage (kV) | Rated current (A) | Breaking current (kA) | Impulse voltage (kV) | Power frequency withstand voltage (kV) | Creepage distance (mm) | Weight (kg) | Dimension (cm) |
| ABB-12/100A | 12-15 | 100 | 8000 | 110 | 40 | 250 | 5.5 | 41×36×9.5 |
| ABB-12/200A | 12-15 | 200 | 10000 | 110 | 40 | 250 | 6 |

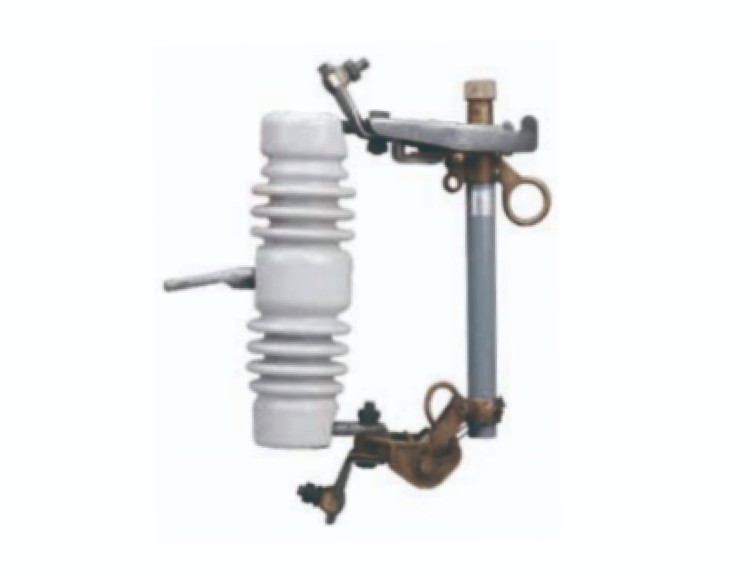

1.Works:
1)It contains a fuse element that will melt and break the circuit when excessive current flows through it, preventing damage to the line or equipment.
2)When the fuse element blows, the cutout drops open to give a visual indication of the fault. This also helps to isolate the faulty section of the line so that power can be restored to unaffected areas more quickly.
2.Specifications:
1)Rated voltage: 12-15kV
2)Rated current: 100A/200A
3)Breaking current: 8000A/10000A
4)Impulse voltage (BIL): 110kV
5)Power frequency withstand voltage: 40kV
6)Creepage Distance: 250mm
