| Type | Rated voltage (kV) | Rated current (A) | Breaking current (kA) | Impulse voltage (kV) | Power frequency withstand voltage (kV) | Creepage distance (mm) | Weight (kg) | Dimension (cm) |

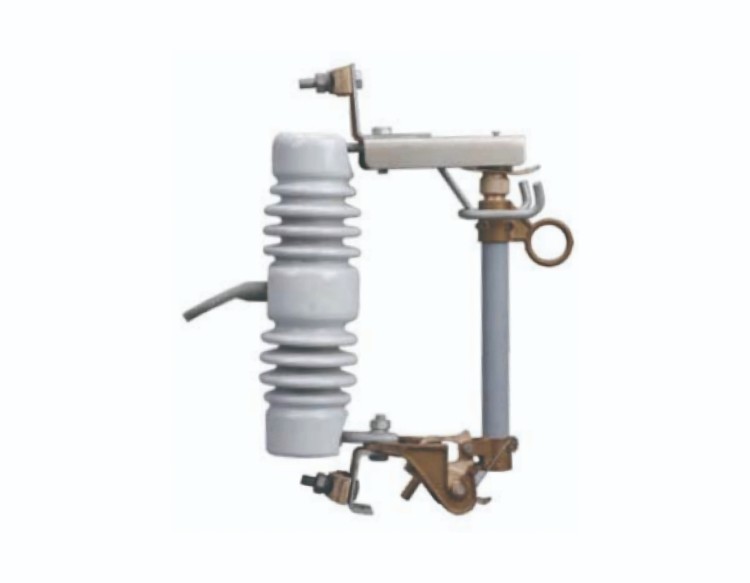

| RW12-12/100A | 12-15 | 100 | 8000 | 110 | 40 | 250 | 5.5 | 41×36×9.5 |
| RW12-12/200A | 12-15 | 200 | 10000 | 110 | 40 | 250 | 6 |
1.Specifications:
1)Rated voltage: 12-15kV
2)Rated current: 100A/200A
3)Breaking current: 8000A/10000A
4)Impulse voltage (BIL): 110kV
5)Power frequency withstand voltage: 40kV
6)Creepage Distance: 250mm
2.Installation:
1)Mounting the insulating bracket on a utility pole or crossarm.
2)Attaching the fuse tube, which contains the moving contacts, to the bracket.
3)Connecting the static contacts at both ends of the insulating bracket to the electrical system.
4)Ensuring proper grounding and secure connections.
