| Type | Rated voltage (kV) | Maximum operating voltage (kV) | Rated current (A) | Breaking current (kA) | Power frequency dry withstand voltage (kV) | Power frequency wet withstand voltage (kV) | Impulse voltage (kV) | Creepage distance (mm) | Weight (kg) |
| HPRWG2-40.5/100 | 35 | 40.5 | 100 | 5 | 95 | 86 | 185 | 1200 | 8.2 |
| HPRWG2-40.5/200 | 35 | 40.5 | 200 | 8 | 95 | 86 | 185 | 1200 | 8.7 |
Here are some key details about it:

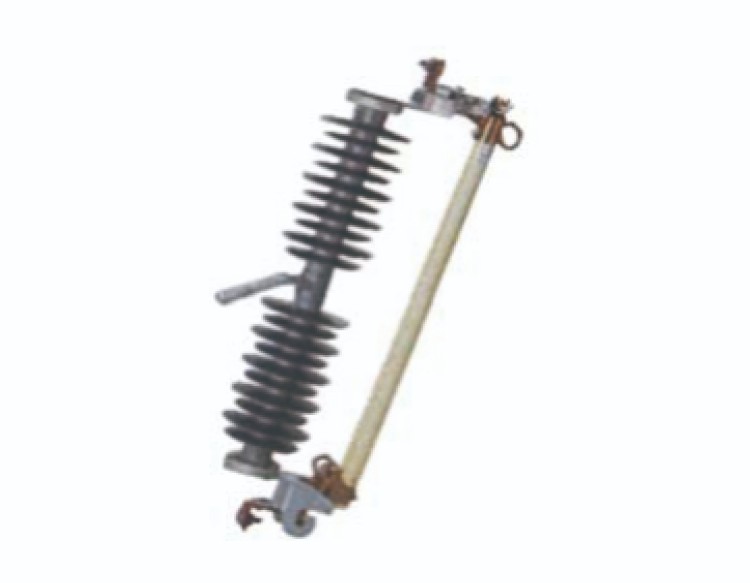

1.Function: The HPRWG2-40.5 is assembled on the high-voltage side of distribution transformers or distribution line branch lines.
2.Purposes:
1)Overload and short-circuit protection for transmission lines.
2)Protection of power transformers.
3)Division and combination of rated load currents.
3.Conditions of Use:
1)Ambient temperature: Between -40°C and +40°C.
2)Altitude: Not exceeding 3000 meters.
3)Maximum wind speed: Not exceeding 35 m/s.
4)Seismic intensity: Should not exceed 8 degrees.
