| Type | Rated voltage (kV) | Maximum operating voltage (kV) | Rated current (A) | Breaking current (kA) | Power frequency dry withstand voltage (kV) | Power frequency wet withstand voltage (kV) | Impulse voltage (kV) | Creepage distance (mm) | Weight (kg) |
| HRW10-12F/100 | 10 | 12 | 100 | 6.3 | 42 | 30 | 75 | 340 | 4.5 |
| HRW10-12F/200 | 10 | 12 | 200 | 8 | 42 | 30 | 75 | 340 | 4.7 |
1.Product Overview:

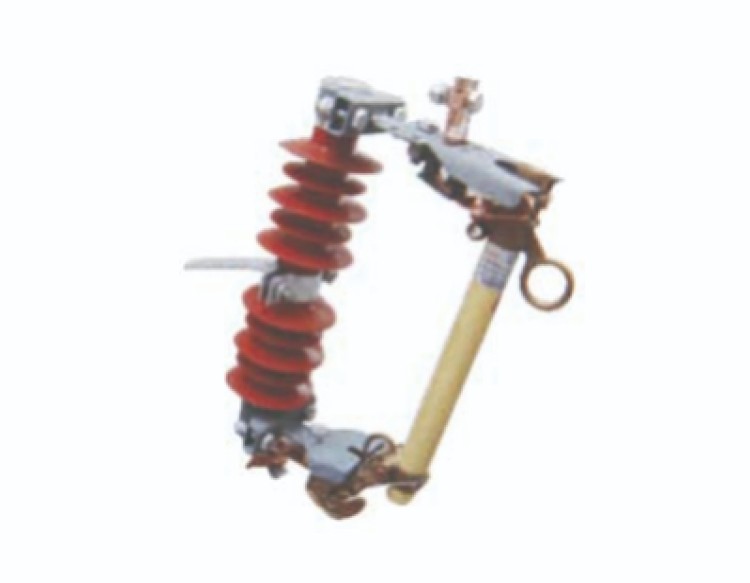

1)The HRW10-12F drop-out fuse cutout ranks at the highest level among international cutout products after several improvements and optimizations.
2)It features a firm and strong structure with accurate fitting.
3)The interrupting current capability is up to 12.5kA.
2.Condition of Use:
1)Ambient air temperatures: Within the range of -30°C to +40°C.
2)Altitude above sea level: Not exceeding 1,000m (if higher, adjustments are needed).
3)Frequency of the A.C. power supply: Not less than 48Hz and not exceeding 52Hz.
3.Structure features:
1)The fuse consists of a base and an arc-extinguishing device.
2)Working contacts are designed in a bridge shape.
3)The fuse tube has a spring bracket at the lower end to maintain tension, ensuring self-locking when the arc-extinguishing tube is in the closed position.
4)During overload or short circuit, the fuse wire melts, and the spring bracket rapidly pulls the fuse wire out of the arc-extinguishing tube, minimizing arcing time and preserving arc-extinguishing material.
