| Type | Rated voltage (kV) | Maximum operating voltage (kV) | Rated current (A) | Breaking current (kA) | Power frequency dry withstand voltage (kV) | Power frequency wet withstand voltage (kV) | Impulse voltage (kV) | Creepage distance (mm) | Weight (kg) |
| HRW3-12/100 | 10 | 12 | 100 | 6.3 | 42 | 30 | 75 | 300 | 2.9 |
| HRW3-12/200 | 10 | 12 | 200 | 8 | 42 | 30 | 75 | 300 | 3.1 |

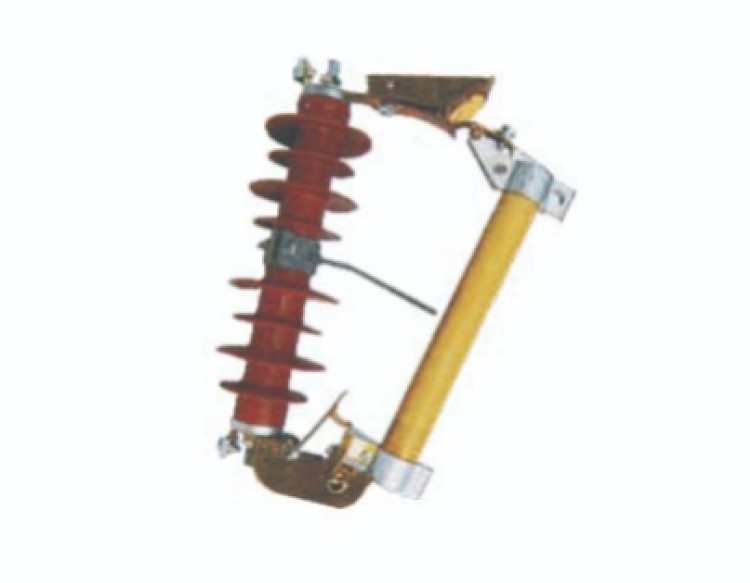

Notable features of the HRW3-12 include:
1.Sturdy and accurate structure with improved design.
2.High interrupting current capacity (up to 12.5 kA).
3.Suitable for 50~60 Hz, 10 kV outdoor distribution networks.
4.Insulating materials ensure reliable performance in various weather conditions.
5.Easy installation and maintenance.
