| Type | Rated voltage (kV) | Maximum operating voltage (kV) | Rated current (A) | Breaking current (kA) | Power frequency dry withstand voltage (kV) | Power frequency wet withstand voltage (kV) | Impulse voltage (kV) | Creepage distance (mm) | Weight (kg) |
| RW5-40.5/100 | 35 | 40.5 | 100 | 5 | 95 | 86 | 185 | 746 | 20 |
| RW5-40.5/200 | 35 | 40.5 | 200 | 8 | 95 | 86 | 185 | 746 | 21 |

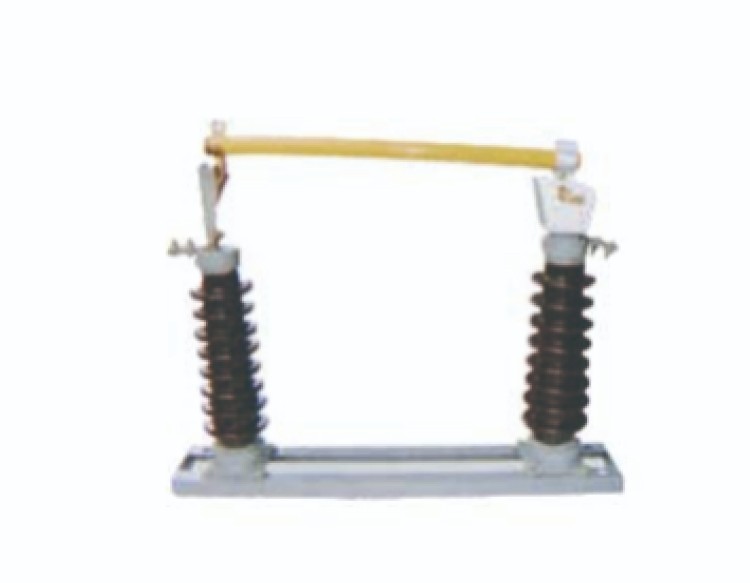

Notable features of the RW5-40.5 include:
1.Insulating porcelain sleeve or silicone rubber composite sleeve with large creepage distance for strong pollution resistance and environmental adaptability.
2.Simple and convenient fuse tube replacement.
3.Good fast fusing performance and large breaking capacity.
4.Suitable for operation in high-altitude areas.
5.Clear disconnection point with the function of isolating switch for safe maintenance.
6.Simple structure, cost-effective, convenient operation, and easy maintenance.
