| Type | Rated voltage (kV) | Maximum operating voltage (kV) | Rated current (A) | Breaking current (kA) | Power frequency dry withstand voltage (kV) | Power frequency wet withstand voltage (kV) | Impulse voltage (kV) | Creepage distance (mm) | Weight (kg) |
| PRWG2-40.5/100 | 35 | 40.5 | 100 | 5 | 95 | 86 | 185 | 935 | 18.5 |
| PRWG2-40.5/200 | 35 | 40.5 | 200 | 8 | 95 | 86 | 185 | 935 | 19 |

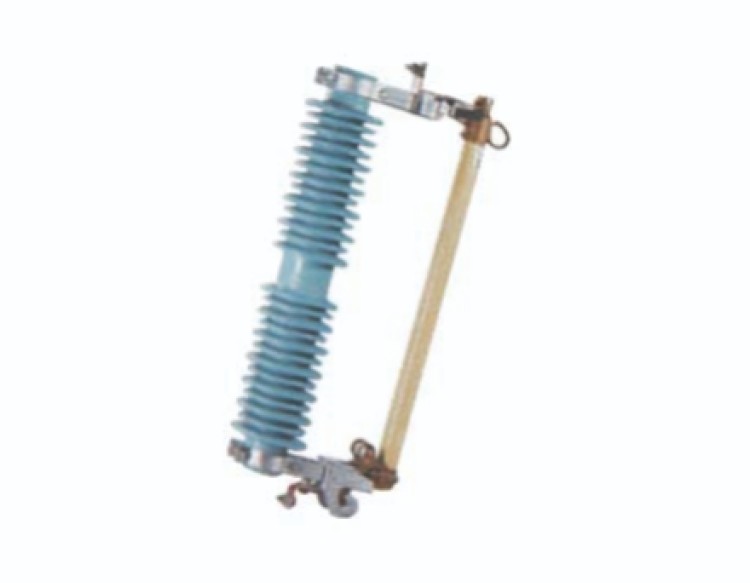

Here are the main technical parameters for the PRWG2-40.5:
1.Rated Voltage (kV): 35
2.Rated Current: 100 A or 200 A
3.Breaking Current: 5000 A (100 A) or 8000 A (200 A)
4.Impulse Voltage (kV): 185
5.Creepage Distance (mm): 935
6.When ordering, make sure to specify:
1)The product name and model specifications.
2)The rated current of the fuse.
3)The desired quantity.
4)Whether you need spare parts or accessories.
