| Type | Rated voltage (kV) | Maximum operating voltage (kV) | Rated current (A) | Breaking current (kA) | Power frequency dry withstand voltage (kV) | Power frequency wet withstand voltage (kV) | Impulse voltage (kV) | Creepage distance (mm) | Weight (kg) |
| PRWG1-12F/100 | 10 | 12 | 100 | 6.3 | 50 | 35 | 85 | 315 | 8.8 |
| PRWG1-12F/200 | 10 | 12 | 200 | 8 | 50 | 35 | 85 | 315 | 9.1 |

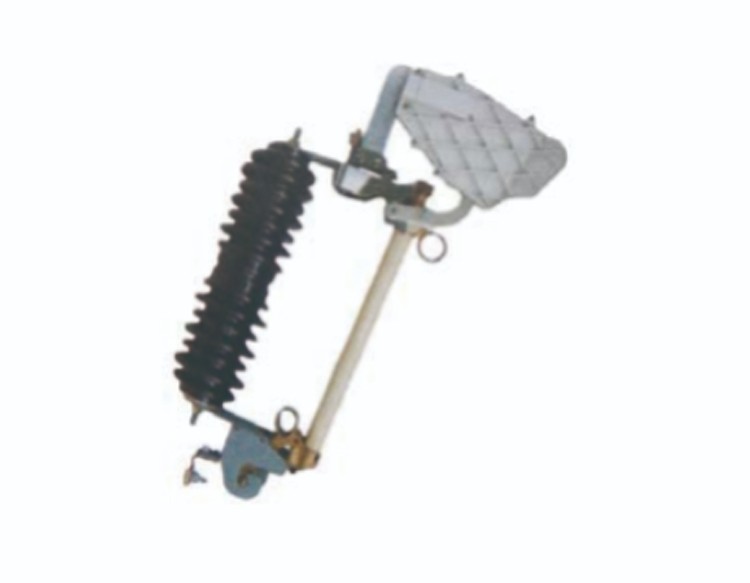

1.Application:
1)The PRWG1-12F is suitable for use in outdoor environments.
2)It serves as a protective device to disconnect power supply lines and transformers during faults.
3)The rated voltage is 10 kV.
2.Structure and Strength:
1)The PRWG1-12F has undergone several improvements and optimizations, making it a robust and reliable product.
2)Its structure ensures accurate fitting and durability.
3)The interrupting current is reaching up to 12.5 kA.
3.Model Annotation:
1)The specific model name is PRWG1-12F.
2)Technical data and sketches are available for reference, but the details provided by the manufacturer prevail.
