| Type | Rated voltage (kV) | Maximum operating voltage (kV) | Rated current (A) | Breaking current (kA) | Power frequency dry withstand voltage (kV) | Power frequency wet withstand voltage (kV) | Impulse voltage (kV) | Creepage distance (mm) | Weight (kg) |
| PRW11-12F/100 | 10 | 12 | 100 | 6.3 | 42 | 30 | 75 | 260 | 7.5 |
| PRW11-12F/200 | 10 | 12 | 200 | 8 | 42 | 30 | 75 | 260 | 7.5 |

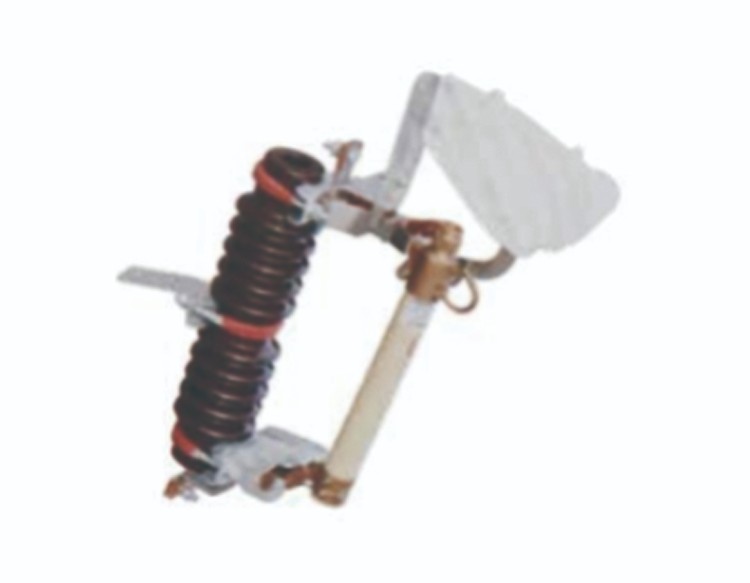

1.Application:The PRW11-12F is suitable for use in outdoor environments.It serves as a protective device to disconnect power supply lines and transformers during faults.
2.Structure and Strength:The PRW11-12F has undergone several improvements and optimizations, making it a robust and reliable product.The interrupting current capability is reaching up to 12.5 kA.
3.Ordering Information:
When ordering the PRW11-12F, consider specifying:
1)The product name and model (PRW11-12F).
2)The required rated current.
3)The desired quantity.
4)Any additional spare parts needed.
