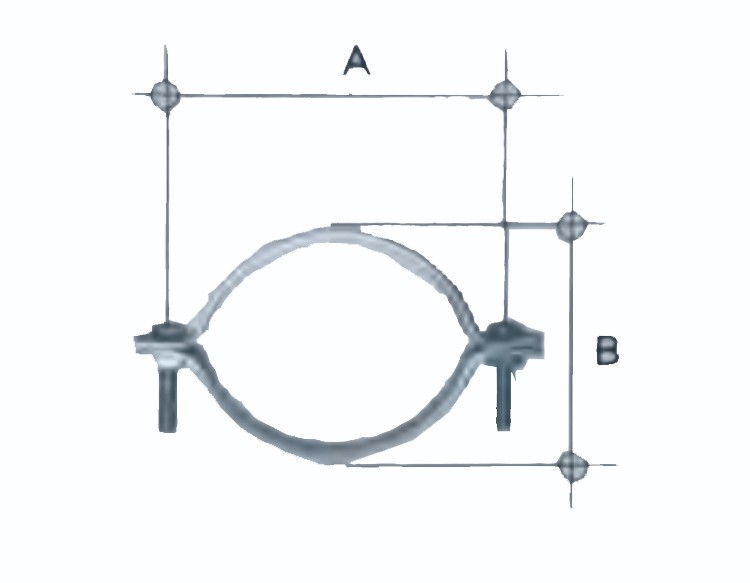

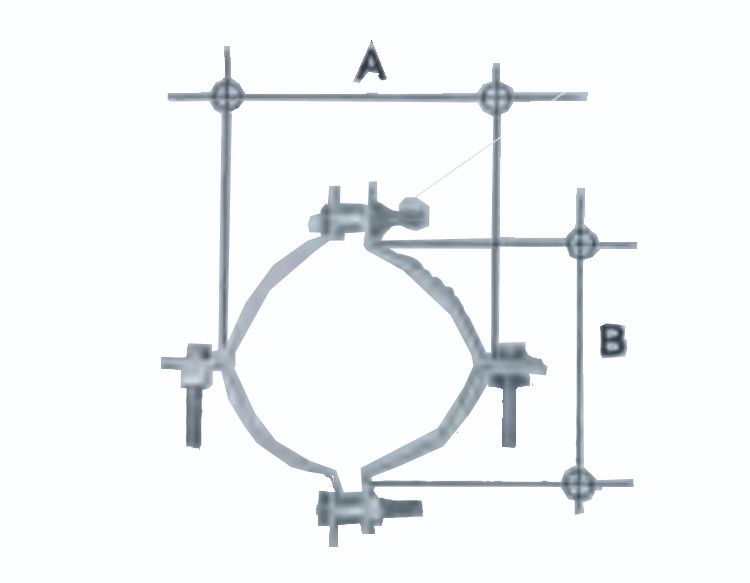

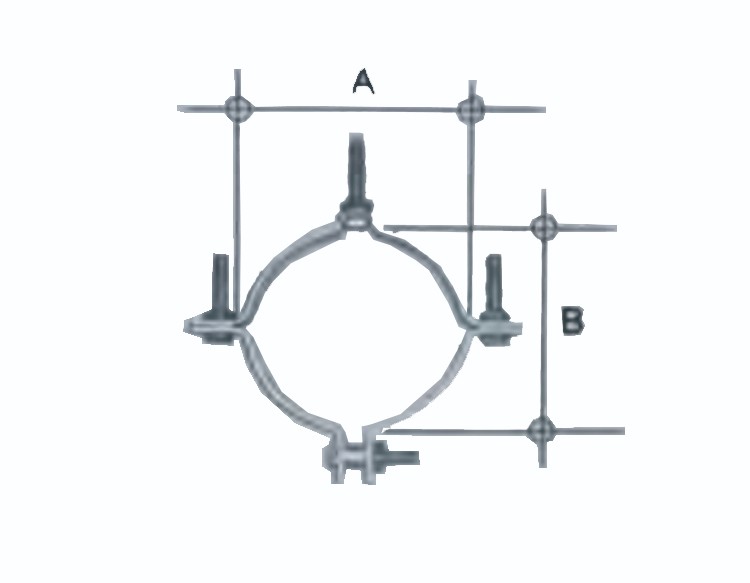

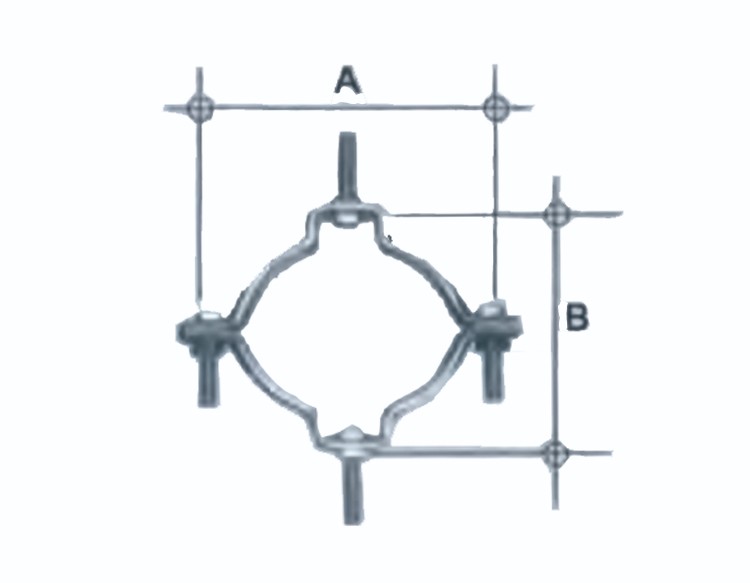

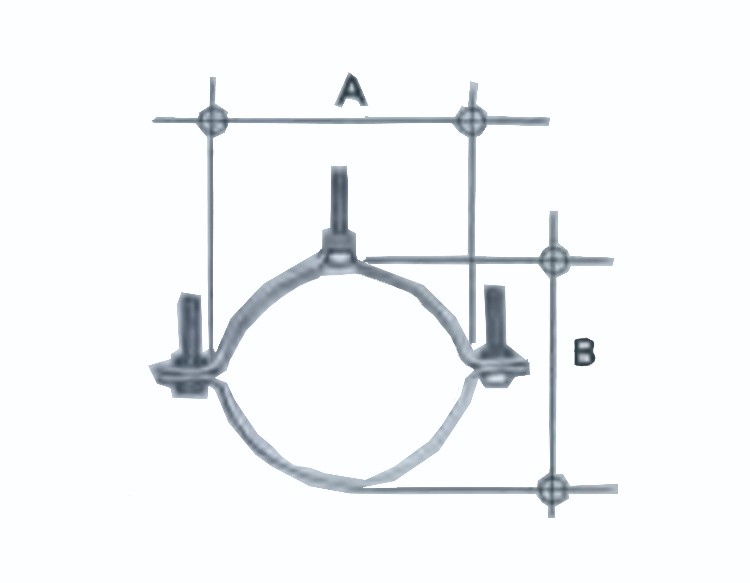

| Catalog No. | Range(mm) | Inch | Dimension | Standard Pkg. Qty./Bundle | |||
| A(mm) | B(mm) | Width(mm) | Gauge(mm) | ||||
| C0150L-06 | 127-152 | 5-6 | 152 | 127 | 50 | 6 | 5 |
| C0150L-07 | 152-178 | 6-7 | 178 | 152 | 50 | 6 | 5 |
| C0150L-08 | 178-203 | 7-8 | 203 | 178 | 50 | 6 | 5 |
| C0150L-09 | 203-229 | 8-9 | 229 | 203 | 50 | 6 | 5 |
| C0150L-10 | 229-254 | 9-10 | 254 | 229 | 50 | 6 | 5 |
| C0150L-11 | 254-279 | 10-11 | 279 | 254 | 50 | 6 | 5 |
| C0150L-12 | 279-305 | 11-12 | 305 | 279 | 50 | 6 | 5 |
| C0150L-14 | 330-356 | 13-14 | 356 | 330 | 50 | 6 | 5 |
| C0150L-15 | 356-381 | 14-15 | 381 | 356 | 50 | 6 | 5 |
| Catalog No. | Clamp Range | Width(mm) | Gauge(mm) | Standard Pkg. Qty./Bundle | ||
| Diameter Inch(mm) | Range(mm) | Inch | ||||
| C0150H-08 | 8(203) | 178-203 | 7-8 | 64 | 6 | 5 |
| C0150H-09 | 9(229) | 203-229 | 8-9 | 64 | 6 | 5 |
| C0150H-10 | 10(254) | 229-254 | 9-10 | 64 | 6 | 5 |
| C0150H-11 | 11(279) | 254-279 | 10-11 | 64 | 6 | 5 |
| C0150H-12 | 12(305) | 279-305 | 11-12 | 64 | 6 | 5 |
| C0150H-13 | 13(330) | 305-330 | 12-13 | 64 | 6 | 5 |
| C0150H-14 | 14(356) | 330-356 | 13-14 | 64 | 6 | 5 |
1.Material:These clamps are typically made of galvanized steel or other durable materials and feature holes or slots for fastening with bolts or screws.
2.Function:They serve as a reliable solution for attaching objects to poles, whether for electrical equipment, signage, or other purposes.
3.Applications:
1)Electrical Equipment Mounting:
(1)Pole clamps secure electrical boxes, transformers, and other equipment to utility poles.
(2)They provide stability and prevent movement due to wind, vibrations, or other forces.
2)Signage and Street Lighting:
(1)Street signs, traffic lights, and decorative banners are often attached to poles using clamps.
(2)These clamps ensure proper positioning and visibility.
3)Communication Cables and Wires:
(1)Pole clamps secure communication cables (such as fiber optic cables) along utility poles.
(2)They maintain cable organization and prevent sagging.
4)Antennas and Wireless Equipment:
(1)Cellular antennas, Wi-Fi equipment, and radio transmitters are mounted using pole clamps.
(2)Clamps keep these devices in place for optimal signal transmission.
5)Security Cameras and Sensors:
(1)Surveillance cameras, motion sensors, and other security devices are affixed to poles using clamps.
(2)Proper installation ensures effective monitoring.
6)Temporary Installations:
(1)During events or construction projects, pole clamps hold temporary banners, flags, or decorations.
(2)They allow easy removal when no longer needed.
