| Référence | Ec | D | Profilé | Effort nominal * (daN) | Poids (kg) | ||
| Q | L | SE | SL | ||||
| PANS1500 60 | 1500 | 1500 | L 60 x 6 | 220 | 625 | 75 | 105 |
| PANS1500 70 | L70x 7 | 340 | 810 | 88 | 118 | ||
| PANS2000 60 | 2000 | 2000 | L 60 x 6 | 175 | 560 | 92 | 124 |
| PANS2000 70 | L 70 x 7 | 280 | 690 | 109 | 141 | ||
| PANS2000 80 | L 80 x 8 | 425 | 940 | 129 | 161 | ||
| PANS2500 60 | 2500 | 2500 | L 60 x 6 | 160 | 500 | 109 | 144 |
| PANS2500 70 | L 70 x 7 | 250 | 625 | 131 | 166 | ||
| PANS2500 80 | L80 x 8 | 375 | 810 | 155 | 190 | ||
| PANS2500 100 | L100 × 10 | 530 | 1060 | 213 | 248 | ||
| PANS3000 60 | 3000 | 3000 | L 60 x 6 | 125 | 375 | 126 | 163 |
| PANS3000 70 | L 70 x 7 | 190 | 560 | 151 | 188 | ||
| PANS3000 80 | L 80 x 8 | 280 | 750 | 180 | 217 | ||
| PANS3000 100 | L 100 x 10 | 375 | 940 | 230 | 287 | ||
| SERIE | COTES POTEAU | |
| Série étroite | E | A 120< <330 B |
| Série large | L | A 120< <550 B |
Here are some details about this component:

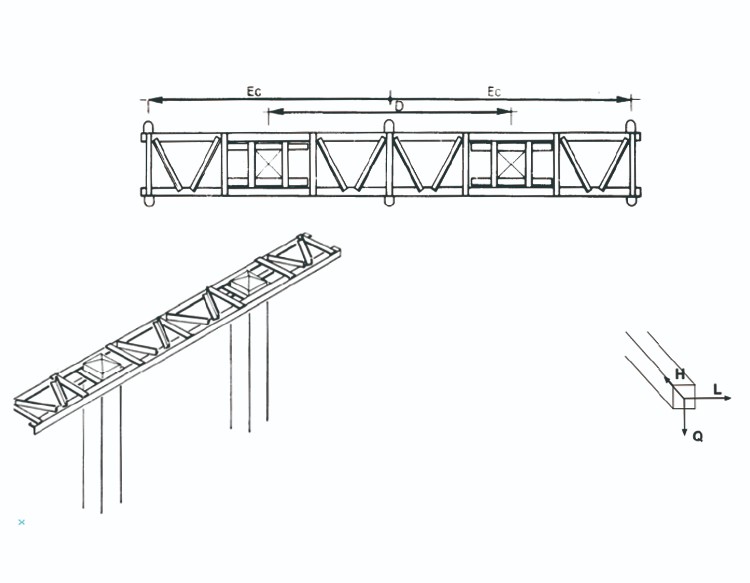

1.Structure: The gantry maintains the cable suspended via the armament. The neutral carrier is pinched in an alignment clamp and then anchored in an anchoring clamp. These clamps are respectively suspended from alignment and anchoring consoles.
2.Usage: It is part of the overhead electrical network built from cables, supports, and armaments.
3.Components: The PANS is associated with devices to controlled elongation “OMEGA”, which provide a considerable additional guarantee against exceptional overloads in simple and double stop.
4.Installation: The mounting of the PANS on metal supports must be done using an SGM plate. The metal supports must be provided with an SGM plate, welded at the height of the crossbar fixing.
