| Référence | Ec | Profilé | Effort nominal * (daN) | Poids (kg) | |||
| Q | L | Q contrefiché | SE | SL | |||
| PUC1050 60 | 1050 | L 60 x 6 | 175 | 625 | 360 | 58 | 66 |
| PUC1200 60 | 1200 | L 60 x 6 | 160 | 625 | 310 | 48 | 66 |
| PUC1500 60 | 1500 | L 60 x 6 | 125 | 375 | 210 | 63 | 70 |
| PUC1050 70 | 1050 | L70 x 7 | 280 | 750 | 560 | 66 | 74 |
| PUC1200 70 | 1200 | L70 x 7 | 250 | 750 | 500 | 66 | 74 |
| PUC1500 70 | 1500 | L70 x 7 | 190 | 560 | 310 | 77 | 91 |
| PUC1050 80 | 1050 | L 80 x 8 | 425 | 1250 | 750 | 83 | 105 |
| PUC1200 80 | 1200 | L 80 x 8 | 375 | 1250 | 690 | 83 | 105 |
| PUC1500 80 | 1500 | L 80 x 8 | 280 | 810 | 444 | 91 | 113 |
| PUC1500 100 | 1500 | L100 x 10 | 530 | 1250 | 875 | 132 | 154 |
| PUC1700 80 | 1700 | L 80 x 8 | 265 | 730 | 390 | 100 | 122 |
| SERIE | COTES POTEAU | |
| Série étroite | SE | A 120< <330 B |
| Série large | SL | A 120< <550 B |

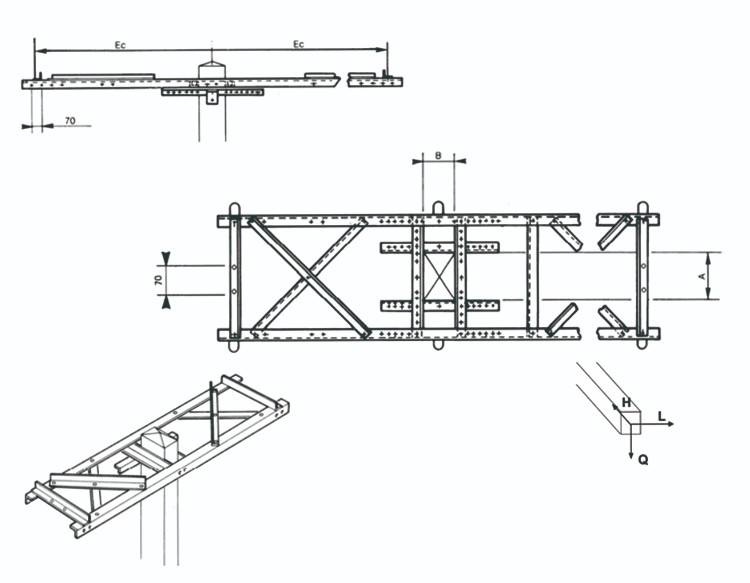

Here are some details about this component:
1.Structure: The PUC is a type of beam that is cross-braced, providing additional structural support and stability.
2.Usage: It is part of the overhead electrical network built from cables, supports, and armaments.
3.Components: The PUC is associated with devices to controlled elongation “OMEGA”, which provide a considerable additional guarantee against exceptional overloads in simple and double stop.
4.Installation: The mounting of the PUC on metal supports must be done using an SGM plate. The metal supports must be provided with an SGM plate, welded at the height of the crossbar fixing.
