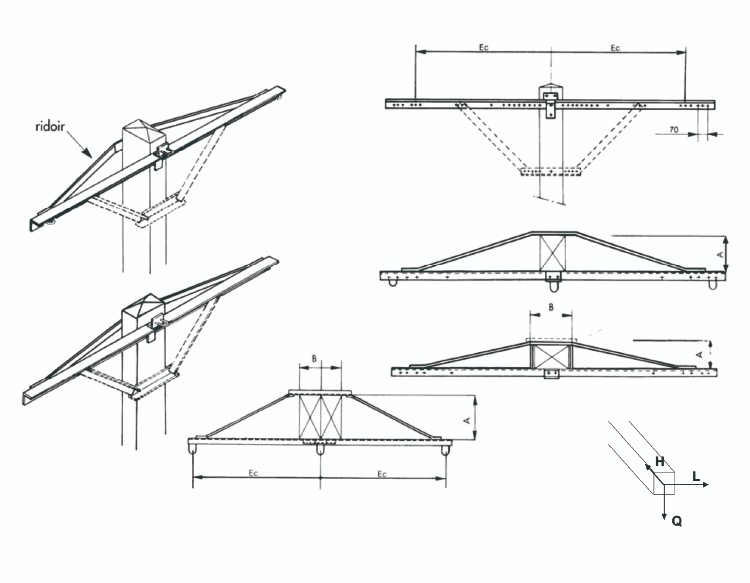

| Référence traverses | Codet EDF | Ec | Effort nominal * (daN) | Poids avec ridoir (kg） | ||
| Q | L | Q contrefiché | ||||
| H61 1050 60 | 6817 302 | 1050 | 65 | 400 | 195 | 26 |
| H61 1200 60 | 1200 | 55 | 400 | 125 | 27 | |
| H61 1500 60 | 1500 | 45 | 360 | 85 | 34 | |
| H61 1050 70 | 1050 | 110 | 640 | 245 | 30 | |
| H61 1200 70 | 68 17 308 | 1200 | 100 | 640 | 215 | 32 |
| H61 1500 70 | 1500 | 70 | 580 | 125 | 39 | |
| H61 1050 80 | 1050 | 150 | 960 | 290 | 35 | |
| H61 1200 80 | 1200 | 140 | 960 | 240 | 38 | |
| H61 1500 80 | 68 17 317 | 1500 | 115 | 890 | 205 | 47 |
| H61 1700 80 | 1700 | 95 | 890 | 160 | 50 | |
| H611700 90 | 1700 | 160 | 1260 | 230 | 61 | |
| Réference ridoirs | Codet EDF | Ec | A | B |
| RIDOIR60 | 1050 1200 | 130<A<280 | 290maxi | |
| RIDOIR70 | 1500 1700 | 100<A<335 | 290maxi |
Here are some details about this component:
1.Structure: The crossbar maintains the cable suspended via the armament. The neutral carrier is pinched in an alignment clamp and then anchored in an anchoring clamp. These clamps are respectively suspended from alignment and anchoring consoles.
2.Usage: It is part of the H61 posts, which are power stations with a power between 50 KVA and 160 KVA and serve rural areas. They are installed on wooden or concrete supports and are powered by an overhead network, hence the name "high pole transformer".
3.Components: Apart from the transformer, the H61 post includes a circuit breaker called a high pole circuit breaker (DHP).
4.Cable Sections: The sections of these cables depend on the power of the H61 transformer.
5.Network: The overhead electrical network is built from cables, supports, and armaments.
