| Model number | Dimension （mm） | Theoretical weight （kg/m） | ||
| B | b | d | ||
| （2.5/1.6） | 25 | 16 | 3 4 | 0.912 1.176 |
| （3.2/2） | 32 | 20 | 3 4 | 1.171 1.522 |
| （4/2.5） | 40 | 25 | 3 4 | 1.484 1.936 |
| （4.5/2.8） | 45 | 28 | 3 4 | 1.687 2.203 |
| （5/3.2） | 50 | 32 | 3 4 | 1.908 2.494 |
| （5.6/3.6） | 56 | 36 | 3 4 5 | 2.153 2.818 3.466 |
| （6.3/4） | 63 | 40 | 4 5 6 7 | 3.185 3.92 4.638 5.339 |
| （7/4.5） | 70 | 45 | 4 5 6 7 | 3.57 4.403 5.218 6.011 |
| （7.5/5） | 75 | 50 | 5 6 8 10 | 4.808 5.699 7.431 9.098 |
| （8/5） | 80 | 50 | 5 6 7 8 | 5.005 5.935 6.848 7.745 |
| （9/5.6） | 90 | 56 | 5 6 7 8 | 5.661 6.717 7.756 8.779 |
| （10/6.3） | 100 | 63 | 6 7 8 10 | 7.55 8.722 9.878 12.142 |
| （10/8） | 100 | 80 | 6 7 8 10 | 8.35 9.656 10.946 13.476 |
| （11/7） | 110 | 70 | 6 7 8 10 | 8.35 9.656 10.946 13.476 |
| （12.5/8） | 125 | 80 | 7 8 10 12 | 11.066 12.551 15.474 18.33 |
| （14/9） | 140 | 90 | 8 10 12 14 | 14.16 17.475 20.724 23.908 |
| （16/10） | 160 | 100 | 10 12 14 16 | 19.872 23.592 27.247 30.835 |
| （18/11） | 180 | 110 | 10 12 14 16 | 22.273 26.464 30.589 34.649 |
| （20/12.5） | 200 | 125 | 12 14 16 18 | 29.761 34.436 39.045 43.588 |

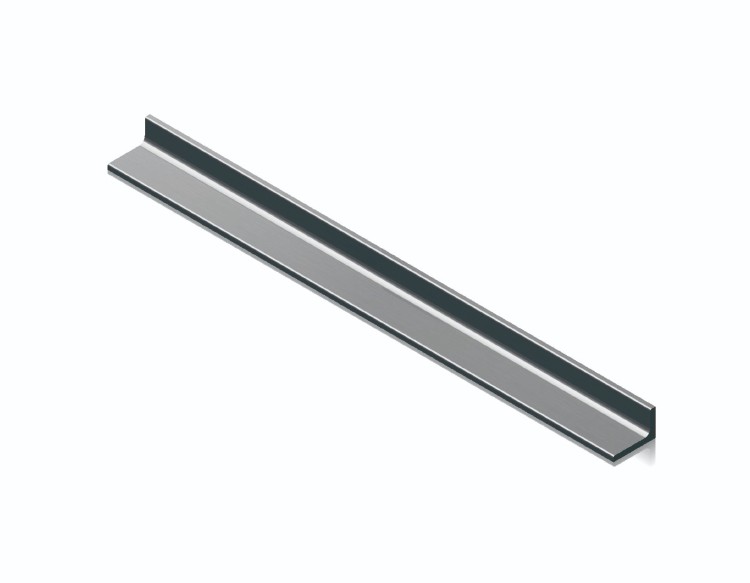

Here are some details about this material:
1.Material: This type of angle steel is made from hot-rolled steel that has been galvanized, or coated in a layer of zinc, to provide protection against rust and corrosion.
2.Structure: Steel structures mainly made of hot-rolled unequal angle steel have suitable structural principles, good plasticity and flexibility, high structural invariance, and are suitable for construction structures that can withstand large vibration and invasion loads.
3.Usage: It is widely used in various metal structures, bridges, machinery manufacturing and shipbuilding, various building structures and engineering structures, such as building beams, bridges, power transmission towers, lifting and transporting machinery, ships, industrial furnaces, reaction towers, container racks, and warehouses.
4.Types: Angle steel has equilateral angle steel and unequal angle steel, and the two sides are perpendicular to each other (i.e., L-shaped), which can well resist bending in all directions.
5.Specification: The specification of hot-rolled unequal angle steel varies according to different models and service conditions.
