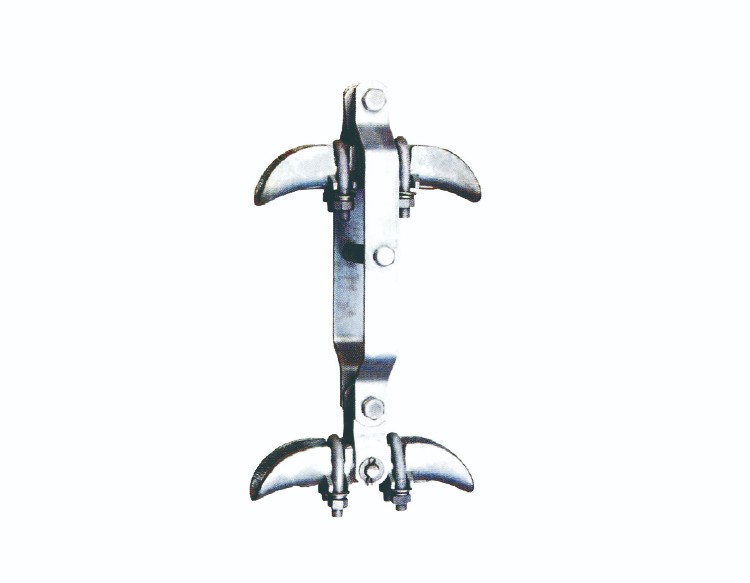

Suspension Clamps-XCS

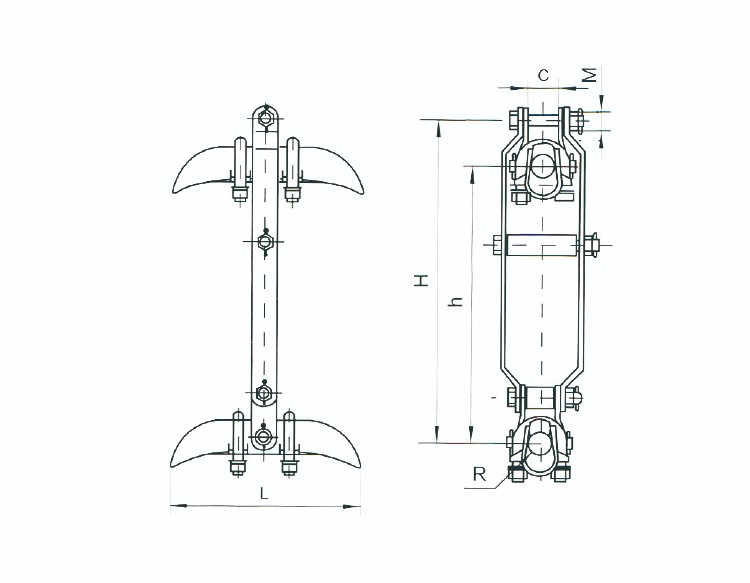

Catalog No. | Diameter | Dimensions (mm) | Failure Load (kN) | Weight (kg) | |||||
L | C | R | H | h | M | ||||
XCS-4 | 21~26 | 250 | 20 | 13.5 | 490 | 400 | 18 | 70 | 9.3 |
XCS-5 | 23~33 | 300 | 38 | 17 | 490 | 400 | 18 | 100 | 10.8 |
XCS-6 | 34~45 | 300 | 38 | 23 | 495 | 400 | 18 | 100 | 12.5 |
The body and keeper are made of Alu. Alloy. The pins are made of stainless steel.
Other parts are steel material. All parts are treated by hot-dip galvanized processes.
